Agnocast#

Agnocast is a rclcpp-compatible true zero-copy IPC middleware that supports all ROS message types, including message structs already generated by rosidl.

ROS 2 supports a wide variety of languages, operating systems, and network transports (RMWs), making it easy to build robotics applications across diverse environments. You can first build your application with ROS 2, then, once you need more performance, gradually migrate the parts that are already working to Agnocast, step by step, and ultimately pursue the best possible performance.

Currently, Linux (Ubuntu) and C++ (rclcpp) applications are supported. Whether support for other OSes or language bindings will be added in the future is undecided.

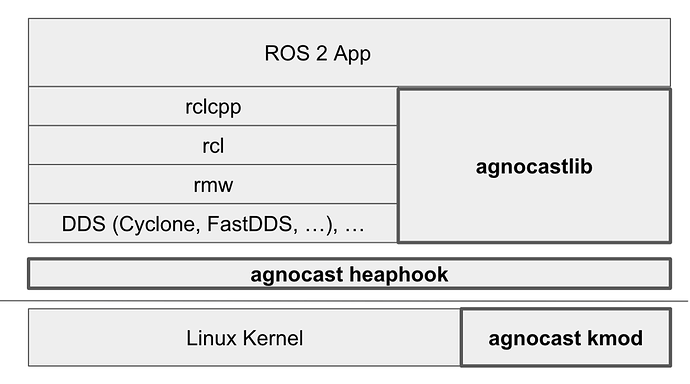

Agnocast Stack

Key Features#

True zero-copy IPC — No serialization, no copies, no compromise. Agnocast delivers messages through shared memory with zero overhead, and it works with every ROS message type out of the box — including structs already generated by rosidl.
Drop-in migration — Existing rclcpp applications can adopt Agnocast incrementally. A two-stage migration path lets you gain zero-copy performance immediately, then optionally bypass the rcl layer entirely for even lower latency and CPU usage.
Per-callback scheduling — Assign thread priority and CPU affinity per CallbackGroup via a simple YAML file. The CallbackIsolatedExecutor gives you real-time-grade control over exactly which callbacks run where and when.
ROS 2 interoperability — The Agnocast-ROS 2 Bridge lets Agnocast nodes and standard RMW-based nodes coexist in the same system. Adopt gradually — no big-bang rewrite required.

Two-Stage Migration#

Existing rclcpp applications can be rewritten in two stages, with performance gains at each stage.

graph LR
    A["rclcpp App"] -->|Stage 1| B["rclcpp::Node<br/>+ Agnocast pub/sub"]
    B -->|Stage 2| C["agnocast::Node<br/>+ Agnocast pub/sub"]
    style A fill:#f5f5f5,stroke:#999
    style B fill:#e3f2fd,stroke:#1565c0
    style C fill:#e8f5e9,stroke:#2e7d32

Stage	Node Class	What Changes	Performance Gain
Stage 1	`rclcpp::Node` (unchanged)	Rewrite publishers, subscriptions, and smart pointers to use Agnocast APIs	Zero-copy IPC for Agnocast topics
Stage 2	`agnocast::Node`	Replace the node base class (requires all pub/sub in the node to be Agnocast-ized)	Bypass rcl layer — reduced launch time and CPU usage

The Agnocast-ROS 2 Bridge enables interoperability between Agnocast and standard ROS 2 nodes at any stage. It offers three modes — Off, Standard, and Performance — so you can start simple and optimize later.

See the Migration Guide for details and code examples.

Supported Environments#

Component	Supported Versions
ROS 2	Humble / Jazzy (rclcpp only)
Linux	Ubuntu 22.04 / 24.04
Kernel	5.x / 6.x series

Both Humble and Jazzy use Agnocast major version 2. The major version is fixed within a ROS 2 distribution and will not change during its lifetime. See the versioning rules in Environment Setup for details.

Limitations#

Because Agnocast delivers messages by sharing the publisher's in-memory representation directly with subscribers, both ends must agree on that representation exactly. This assumption shapes most of the current limitations.

Memory layout must match between publisher and subscriber#

Agnocast does not serialize messages. The publisher and subscriber read and write the same bytes in shared memory, so the in-memory layout of the message type — field order, padding, alignment, and ABI of any nested types — must be byte-for-byte identical on both sides.

In practice this holds automatically when all nodes are built against the same ROS 2 distribution, since the C++ ABI is stable across typical compiler versions. The realistic failure mode — most likely when publisher and subscriber are built in different containers — is mismatched _GLIBCXX_USE_CXX11_ABI settings, which change the layout of std::string and other standard types. Mismatched layouts will not produce a clean error; subscribers will simply read corrupted data.

Single ECU, single IPC namespace#

Agnocast pub/sub only works between processes that share the same Linux IPC namespace on the same machine.

Cross-ECU communication: When an Agnocast publisher and subscriber on the same topic live on different ECUs, the Bridge is not automatically started to connect them. Each side will only see local endpoints. Automatic discovery of remote Agnocast endpoints and on-demand Bridge creation is on the roadmap.
Cross-IPC-namespace communication is not supported. Containers must share an IPC namespace to communicate via Agnocast — see Running in Containers. Native cross-namespace support is on the roadmap.

No ROS domain isolation or domain bridge#

Agnocast does not honor ROS_DOMAIN_ID. All Agnocast processes in the same IPC namespace see each other regardless of domain, and there is no domain-to-domain bridge equivalent to the ROS 2 domain bridge. Domain-aware behavior is on the roadmap.

One message type per topic#

A given Agnocast topic name must be used with a single message type across all publishers and subscribers. Publishing or subscribing to the same topic with different types is not supported.

Other API-level limitations#

Service / client API is experimental and may change in future versions — see Client and Service.
message_filters does not support every policy and filter available in upstream ROS 2 — see the compatibility table.
