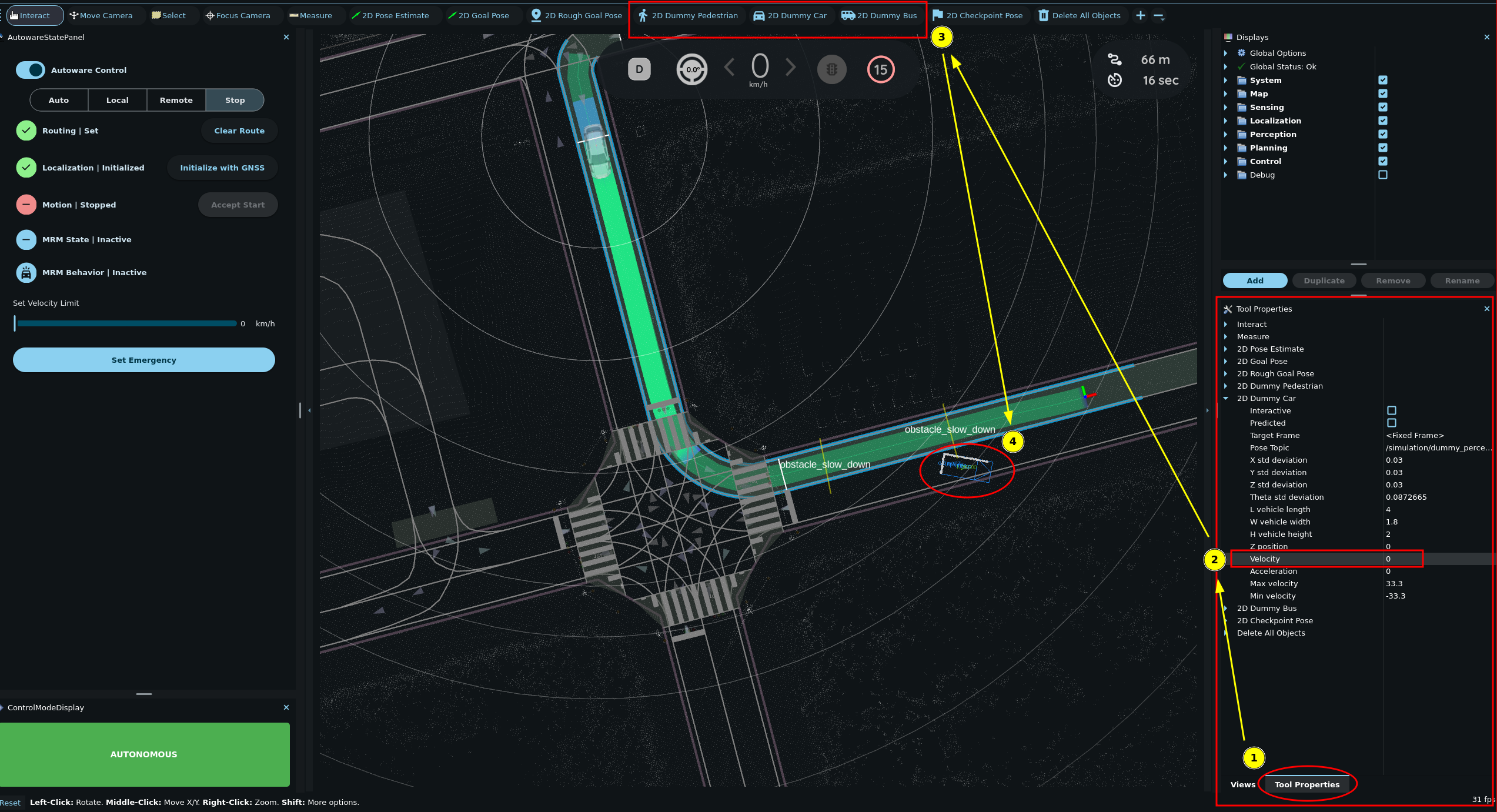

Placing dummy objects

1. Click the 2D Dummy Car or 2D Dummy Pedestrian button in the toolbar.
2. Set the pose of the dummy object by clicking and dragging on the map.
3. Set the velocity of the object in Tool Properties -> 2D Dummy Car/Pedestrian panel.

Note

Changes to the velocity parameter will only affect objects placed after the parameter is changed.

Delete all dummy objects

Click the Delete All Objects button in the toolbar and then click anywhere in the 3D View pane to complete it.

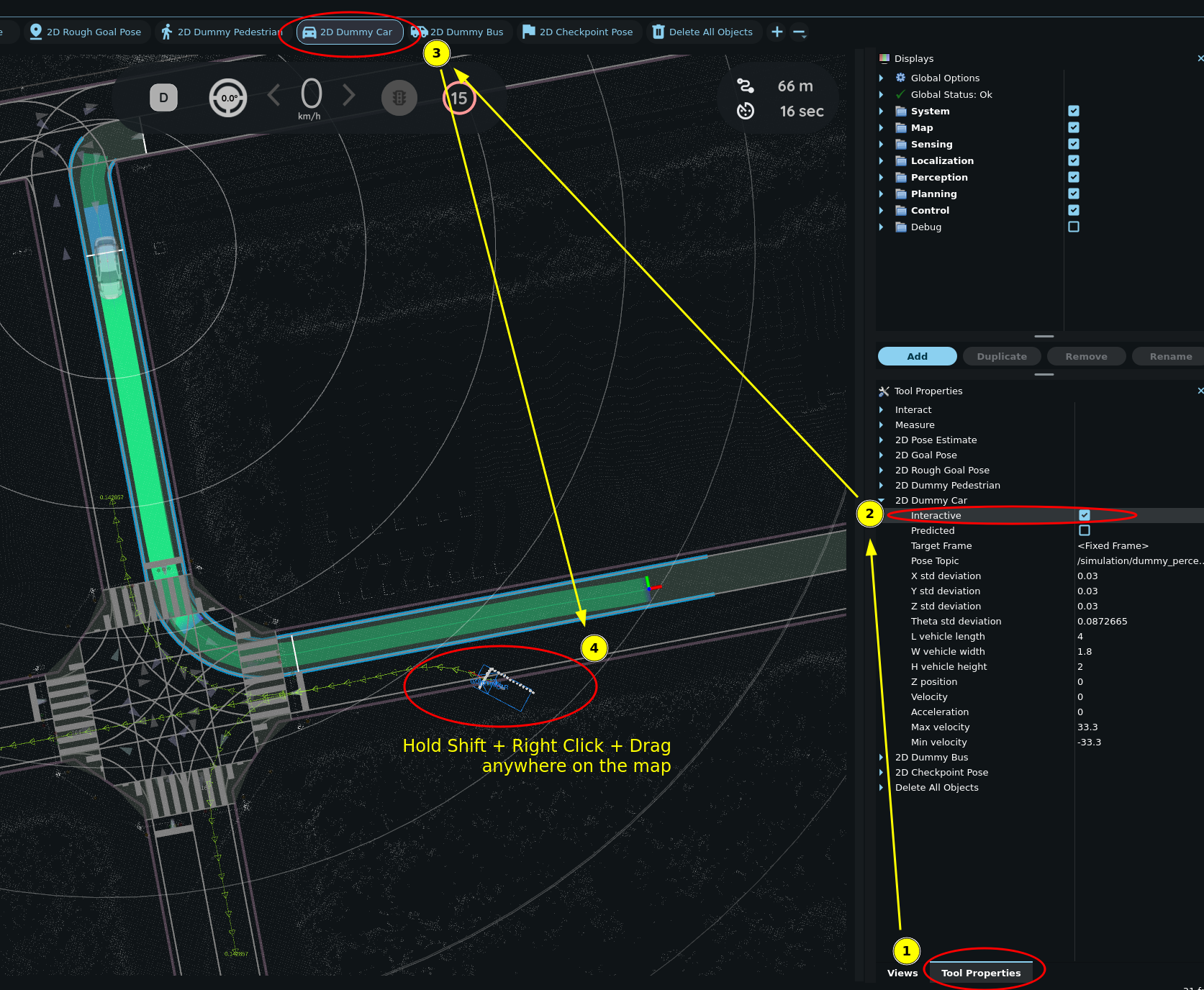

Placing interactive dummy objects

Click the Interactive button in the toolbar to create the next dummy object in interactive mode.

Info

• Add an interactive dummy object: Shift+🖱️ Right Click on the map.
• Delete an interactive dummy object: Alt+🖱️ Right Click on the object.
• Move an existing interactive dummy object: 🖱️ Right Click and hold on the object. Then drag and drop it to the desired location.
