Software Configuration#

The software we deploy is VisionPilot

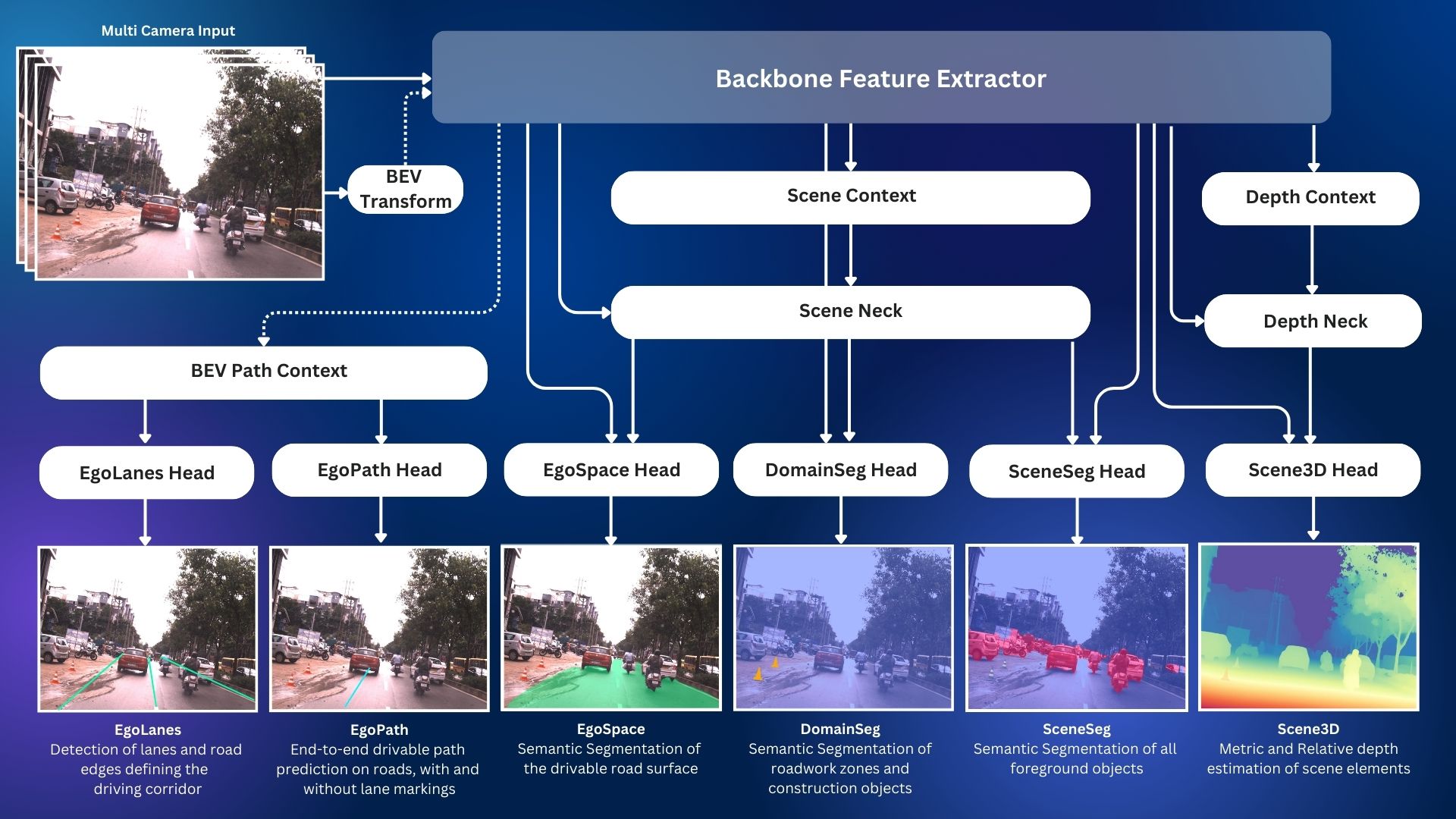

AutoSeg is an AI Foundation Model which provides real-time visual scene perception for autonomous vehicles. It utilizes a single neural network backbone to extract diverse image features, a set of context blocks which focus the network's attention on key visual elements within input images, a set of feature necks which aggregate and fuse multi-scale image features, and multiple segmentation and detection heads which provide useful perceptual outputs for autonomous decision making. Overall, the network is split into three branches, a Depth Branch which calculates the per-pixel scene depth, a Scene Branch which focuses on per-pixel scene segmentation, and a Path Branch, which focuses on driving corridor detection through multiple means.

AutoSeg is comprised of 6 neural network export models which include:

  • Scene3D: Metric and Relative depth estimation of scene elements.
  • SceneSeg: Semantic segmentation of all foreground objects.
  • DomainSeg: Semantic segmentation of roadwork zones and construction objects.
  • EgoSpace: Semantic Segmentation of the drivable road surface.
  • EgoPath: End-to-end drivable path prediction on roads, with and without lane markings.
  • EgoLanes: Detection of lanes and road edges defining the driving corridor.

Software Overview

To run the VisionPilot, we need to install some prerequisites first.

Now that the Vision Pilot support two kinds of pipeline. You can follow the tutorial below to run the software.
