Crosswalk#

Role#

This module judges whether the ego should stop in front of the crosswalk in order to provide safe passage of crosswalk users such as pedestrians and bicycles based on the objects' behavior and surround traffic.

crosswalk_module

Features#

Yield#

Target Object#

The target object's type is filtered by the following parameters in the object_filtering.target_object namespace.

Parameter Unit Type Description
unknown [-] bool whether to look and stop by UNKNOWN objects
pedestrian [-] bool whether to look and stop by PEDESTRIAN objects
bicycle [-] bool whether to look and stop by BICYCLE objects
motorcycle [-] bool whether to look and stop by MOTORCYCLE objects

In order to detect crosswalk users crossing outside the crosswalk as well, the crosswalk module creates an attention area around the crosswalk shown as the yellow polygon in the figure. If the object's predicted path collides with the attention area, the object will be targeted for yield.

crosswalk_attention_range

The parameter is in the object_filtering.target_object namespace.

Parameter Unit Type Description
crosswalk_attention_range [m] double the detection area is defined as -X meters before the crosswalk to +X meters behind the crosswalk

Stop Position#

First of all, stop_distance_from_object [m] is always kept at least between the ego and the target object for safety.

When the stop line exists in the lanelet map, the stop position is calculated based on the line. When the stop line does NOT exist in the lanelet map, the stop position is calculated by keeping stop_distance_from_crosswalk [m] between the ego and the crosswalk.

On the other hand, if pedestrian (bicycle) is crossing wide crosswalks seen in scramble intersections, and the pedestrian position is more than far_object_threshold meters away from the stop line, the actual stop position is determined to be stop_distance_from_object and pedestrian position, not at the stop line.

far_object_threshold

Yield decision#

The module make a decision to yield only when the pedestrian traffic light is GREEN or UNKNOWN. Calculating the collision point, the decision is based on the following variables.

  • TTC: Time-To-Collision which is the time for the ego to reach the virtual collision point.
  • TTV: Time-To-Vehicle which is the time for the object to reach the virtual collision point.

Depending on the relative relationship between TTC and TTV, the ego's behavior at crosswalks can be classified into three categories based on [1]

  • A. TTC >> TTV: The object has enough time to cross before the ego.
    • No stop planning.
  • B. TTC ≒ TTV: There is a risk of collision.
    • Stop point is inserted in the ego's path.
  • C. TTC << TTV: Ego has enough time to cross before the object.
    • No stop planning.

Smooth Yield Decision#

When the object is stopped around the crosswalk but has no intention to walk, the ego will yield the object forever. To prevent this dead lock, the ego will cancel the yield depending on the situation.

When there is no traffic light#

For the object is stopped around the crosswalk but has no intention to walk, when the ego keeps stopping to yield for a certain time (*1), the ego cancels the yield and start driving.

*1: The time is calculated based on the distance between the object and crosswalk. When distance_map_for_no_intention_to_walk is [1.0, 5.0] and timeout_map_for_no_intention_to_walk is [3.0, 0.0], the time is calculated as follows.

When there is traffic light#

For the object is stopped around the crosswalk but has no intention to walk, when the ego will cancel the yield without stopping. This comes from the assumption that the object has no intention to walk since it is stopped even though the pedestrian traffic light is green.

New Object Handling#

Safety Slow Down Behavior#

In current autoware implementation if there are no target objects around a crosswalk, ego vehicle will not slow down for the crosswalk. However, if ego vehicle to slow down to a certain speed in such cases is wanted then it is possible by adding some tags to the related crosswalk definition as it is instructed in lanelet2_format_extension.md document.

Parameter Type Description
slow_velocity [m/s] double target vehicle velocity when module receive slow down command from FOA
max_slow_down_jerk [m/sss] double minimum jerk deceleration for safe brake
max_slow_down_accel [m/ss] double minimum accel deceleration for safe brake
no_relax_velocity [m/s] double if the current velocity is less than X m/s, ego always stops at the stop position(not relax deceleration constraints)

Stuck Vehicle Detection#

The feature will make the ego not to stop on the crosswalk. When there are low-speed or stopped vehicle ahead of the crosswalk, and there is not enough space between the crosswalk and the vehicle, the crosswalk module will plan to stop before the crosswalk even if there are no pedestrians or bicycles.

min_acc, min_jerk, and max_jerk are met. If the ego cannot stop before the crosswalk with these parameters, the stop position will move forward.

stuck_vehicle_attention_range

In the stuck_vehicle namespace,

Parameter Unit Type Description
stuck_vehicle_velocity [m/s] double maximum velocity threshold whether the target vehicle is stopped or not
max_stuck_vehicle_lateral_offset [m] double maximum lateral offset of the target vehicle position
stuck_vehicle_attention_range [m] double detection area length ahead of the crosswalk
min_acc [m/ss] double minimum acceleration to stop
min_jerk [m/sss] double minimum jerk to stop
max_jerk [m/sss] double maximum jerk to stop

Parameters for pass judge logic#

Also see algorithm section.

Parameter Type Description
pass_judge.ego_pass_first_margin double [s] time margin for ego pass first situation
pass_judge.ego_pass_later_margin double [s] time margin for object pass first situation
pass_judge.stop_object_velocity_threshold double [m/s] velocity threshold for the module to judge whether the objects is stopped
pass_judge.min_object_velocity double [m/s] minimum object velocity (compare the estimated velocity by perception module with this parameter and adopt the larger one to calculate TTV.)
pass_judge.timeout_no_intention_to_walk double [s] if the pedestrian does not move for X seconds after stopping before the crosswalk, the module judge that ego is able to pass first.
pass_judge.timeout_ego_stop_for_yield double [s] the amount of time which ego should be stopping to query whether it yields or not.

Inner-workings / Algorithms#

Yield Decision#

This module uses the larger value of estimated object velocity and min_object_velocity in calculating TTV in order to avoid division by zero.

uml diagram

Other Parameters#

Parameter Type Description
common.show_processing_time bool whether to show processing time
common.traffic_light_state_timeout double [s] timeout threshold for traffic light signal

Known Issues#

  • The yield decision may be sometimes aggressive or conservative depending on the case.
    • The main reason is that the crosswalk module does not know the ego's position in the future. The detailed ego's position will be determined after the whole planning.
    • Currently the module assumes that the ego will move with a constant velocit.yu

Debugging#

Visualization of debug markers#

/planning/scenario_planning/lane_driving/behavior_planning/behavior_velocity_planner/debug/crosswalk shows the following markers.

limitation

  • Yellow polygons
    • Ego footprints' polygon to calculate the collision check.
  • Pink polygons
    • Object footprints' polygon to calculate the collision check.
  • The color of crosswalk
    • Considering the traffic light's color, red means the target crosswalk and white means the ignored crosswalk.
  • Texts
    • It shows the module id, TTC, TTV, and the module state.

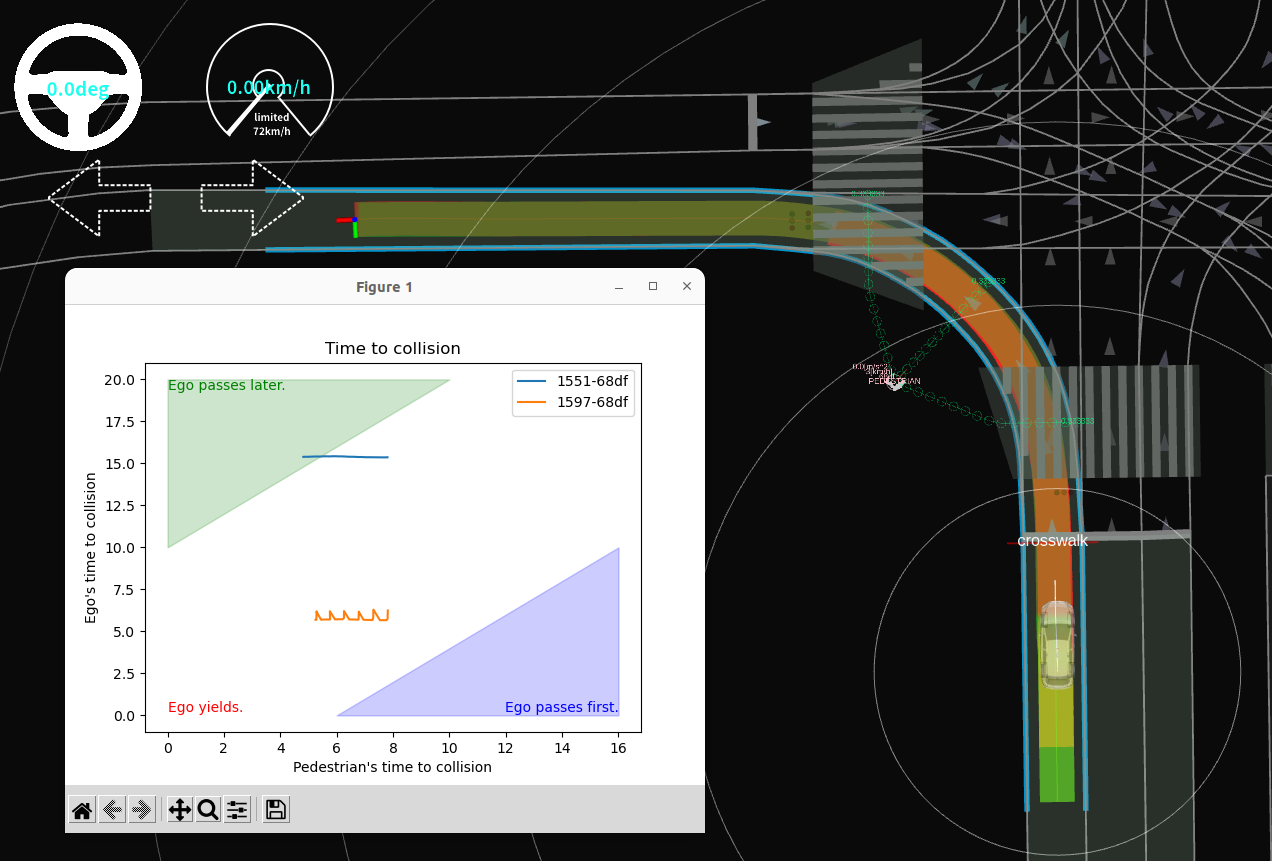

Visualization of Time-To-Collision#

ros2 run behavior_velocity_crosswalk_module time_to_collision_plotter.py

enables you to visualize the following figure of the ego and pedestrian's time to collision. The label of each plot is <crosswalk module id>-<pedestrian uuid>.

limitation

Trouble Shooting#

Behavior#

  • Q. The ego stopped around the crosswalk even though there were no crosswalk user objects.
  • Q. The crosswalk virtual wall suddenly appeared resulting in the sudden stop.
    • A. There may be a crosswalk user started moving when the ego was close to the crosswalk.
  • Q. The crosswalk module decides to stop even when the pedestrian traffic light is red.
    • A. The lanelet map may be incorrect. The pedestrian traffic light and the crosswalk have to be related.
  • Q. In the planning simulation, the crosswalk module does the yield decision to stop on all the crosswalks.
    • A. This is because the pedestrian traffic light is unknown by default. In this case, the crosswalk does the yield decision for safety.

Parameter Tuning#

  • Q. The ego's yield behavior is too conservative.
  • Q. The ego's yield behavior is too aggressive.

[1] 佐藤 みなみ, 早坂 祥一, 清水 政行, 村野 隆彦, 横断歩行者に対するドライバのリスク回避行動のモデル化, 自動車技術会論文集, 2013, 44 巻, 3 号, p. 931-936.
