Chassis Design#
(To be completed)
Vehicle Definition#
| Reference Design | ||
|---|---|---|
| Wheel base (inch) | Dimension | |
| Length | 2500 | 3500 |
| Heigh | 2500 | |
| Width | 1500 | |
| Power Train | ||
| Battery Capacity | ||
| Range | ||
| Voltage | ||
| Steering | ||
| 2 Wheel | v | |
| 4 Wheel | Optional | |
| Power | ||
| 2 Wheel (2WD) | V | |
| 4 Wheel (4WD) | ||
| 6 Wheel (6WD) | ||
| Speed | <20 kph | 5, 10, 15 |
| Payload | 500 - 1000KG | |
| Turn Radius | > 4M | |
| Slope | 20 (degree) | |

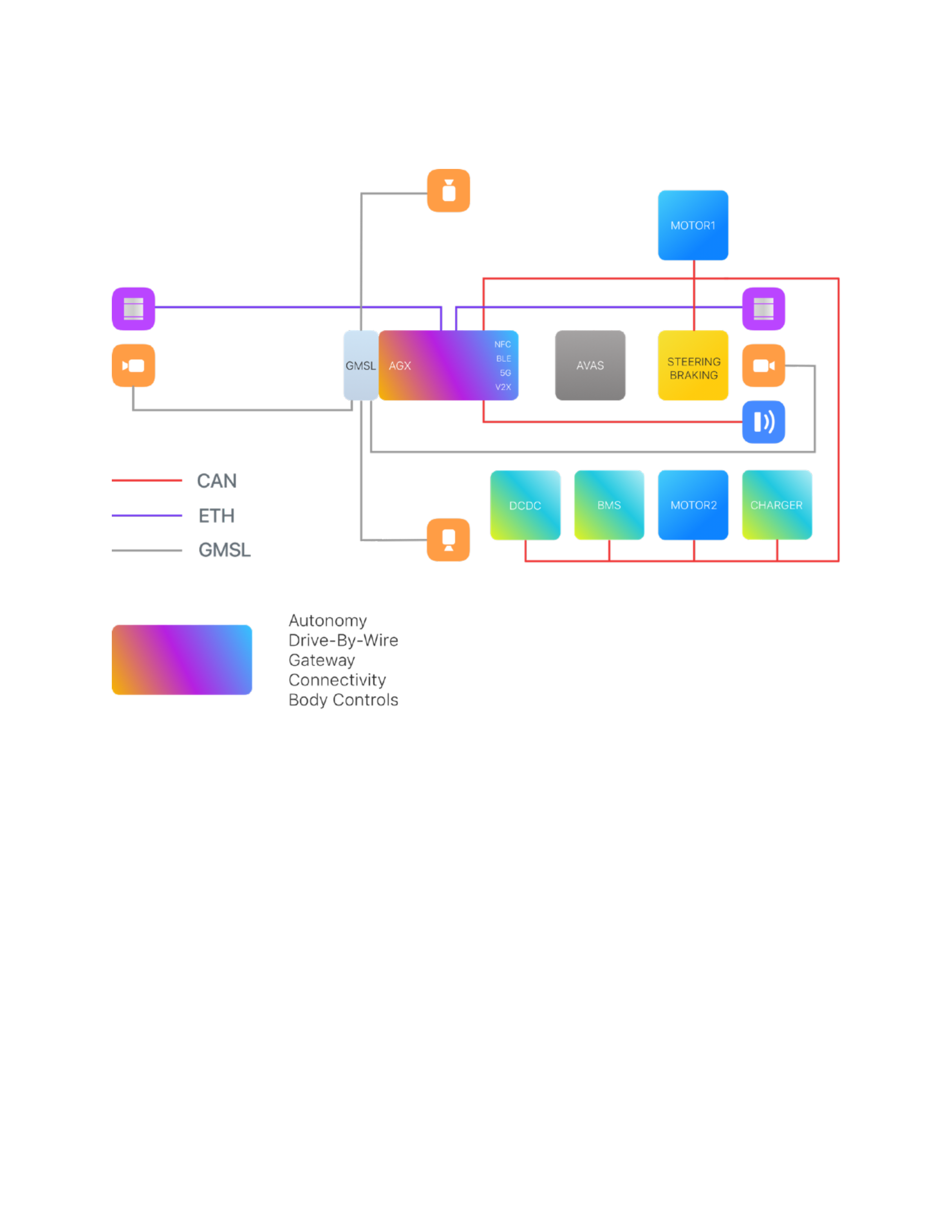

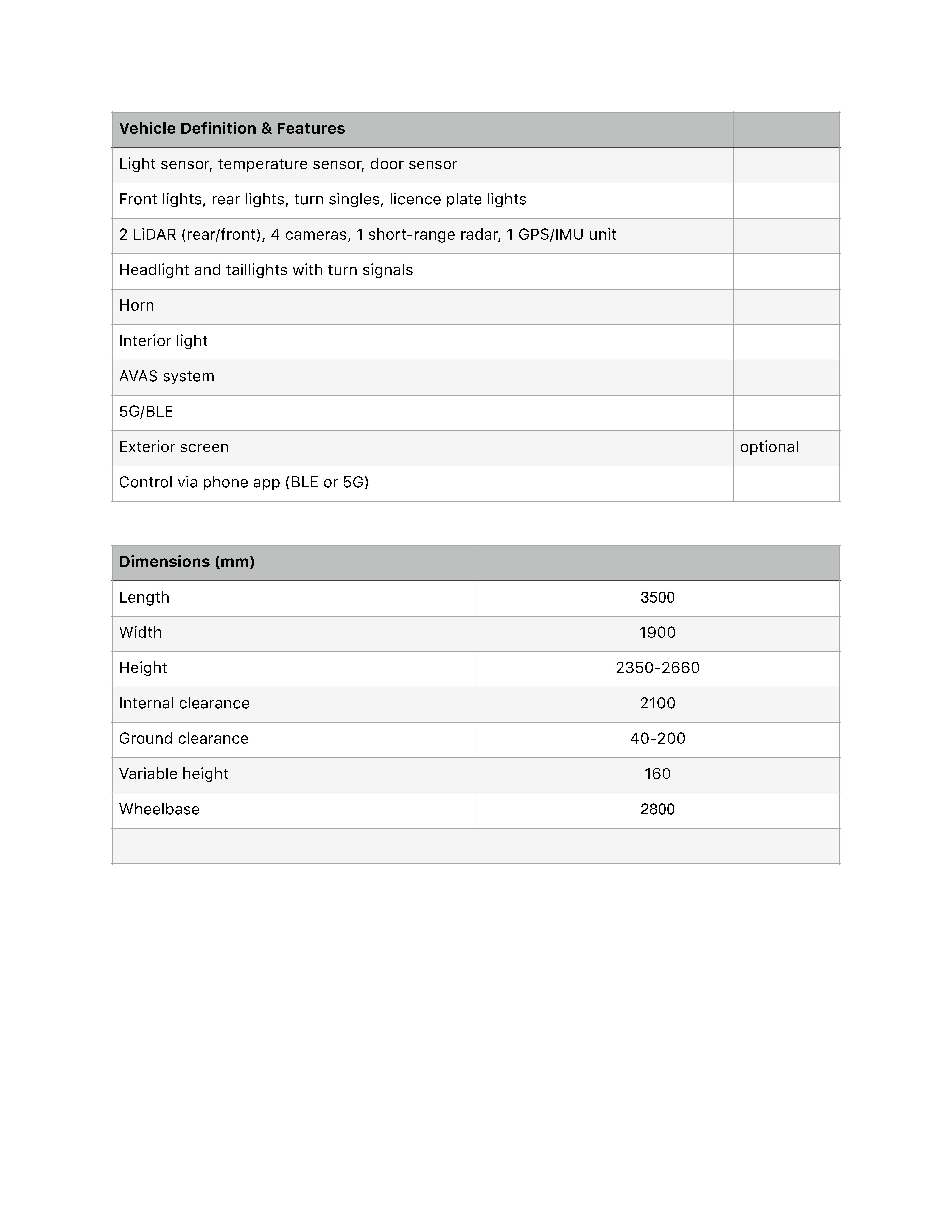

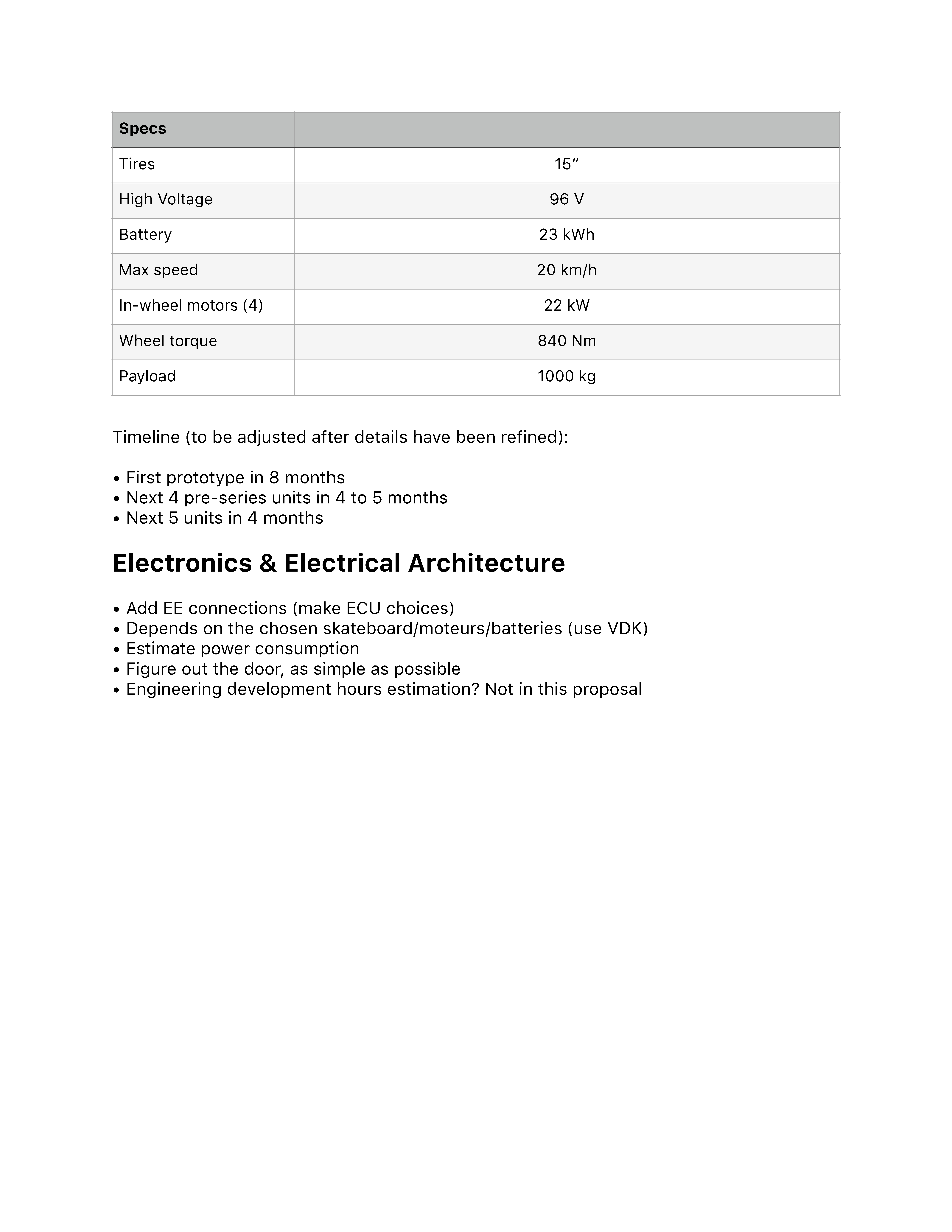

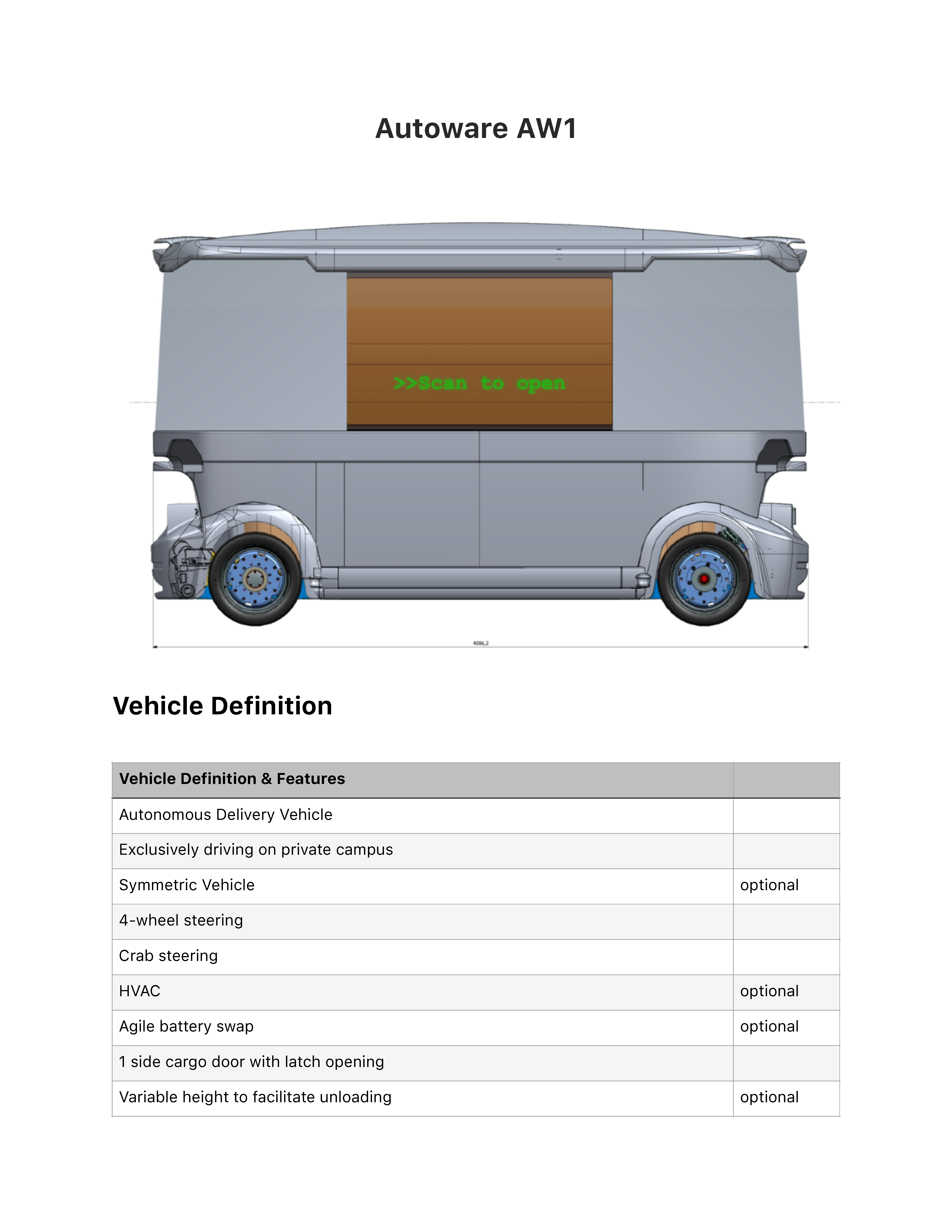

Example Drawing#
