multi_object_tracker#

Purpose#

The results of the detection are processed by a time series. The main purpose is to give ID and estimate velocity.

Inner-workings / Algorithms#

This multi object tracker consists of data association and EKF.

multi_object_tracker_overview

Data association#

The data association performs maximum score matching, called min cost max flow problem. In this package, mussp[1] is used as solver. In addition, when associating observations to tracers, data association have gates such as the area of the object from the BEV, Mahalanobis distance, and maximum distance, depending on the class label.

EKF Tracker#

Models for pedestrians, bicycles (motorcycles), cars and unknown are available. The pedestrian or bicycle tracker is running at the same time as the respective EKF model in order to enable the transition between pedestrian and bicycle tracking. For big vehicles such as trucks and buses, we have separate models for passenger cars and large vehicles because they are difficult to distinguish from passenger cars and are not stable. Therefore, separate models are prepared for passenger cars and big vehicles, and these models are run at the same time as the respective EKF models to ensure stability.

Inputs / Outputs#

Input#

Multiple inputs are pre-defined in the input channel parameters (described below) and the inputs can be configured

Name Type Description
input/detection**/objects std::string input topic
input/detection**/channel std::string input channel configuration

rule of the channel configuration

  • 'none' or empty : Indicates that this detection input channel is not used/disabled
  • Any other string : Specifies a custom channel name to be used for the detection input, configured in schema/input_channels.schema.json

Up to 12 detection inputs can be configured (detection01 through detection12). Each input consists of an objects topic and its corresponding channel configuration.

Example configurations:

  • Single detection input:
input/detection01/objects: /perception/object_recognition/detection/objects
input/detection01/channel: detected_objects # general input channel type
input/detection02/objects: input/objects02
input/detection02/channel: none # Disabled
  • Multiple detection inputs:
# lidar centerpoint
input/detection01/objects: /perception/object_recognition/detection/lidar_centerpoint/objects
input/detection01/channel: lidar_centerpoint

# lidar short_range centerpoint
input/detection02/channel: /perception/object_recognition/detection/centerpoint_short_range/objects
input/detection02/objects: lidar_centerpoint_short_range

# camera lidar fusion
input/detection03/objects: /perception/object_recognition/detection/clustering/camera_lidar_fusion/objects
input/detection03/channel: camera_lidar_fusion

# camera lidar fusion based irregular object detection
input/detection04/objects: /perception/object_recognition/detection/irregular_object/objects
input/detection04/channel: camera_lidar_fusion_irregular

# detection by tracker
input/detection05/objects: /perception/object_recognition/detection/detection_by_tracker/objects
input/detection05/channel: detection_by_tracker

# radar
input/detection06/objects: /perception/object_recognition/detection/radar/objects
input/detection06/channel: radar

# disable
input/detection07/objects: input/objects07
input/detection07/channel: none # Disabled

Up to 12 detection inputs can be configured (detection01 through detection12). Each input consists of an objects topic and its corresponding channel configuration.

Output#

Name Type Description
~/output autoware_perception_msgs::msg::TrackedObjects tracked objects

Parameters#

Input Channel parameters#

Name Type Description Default Range
flags.can_spawn_new_tracker boolean Indicates if the input channel can spawn new trackers. True N/A
flags.can_trust_existence_probability boolean Indicates if the input channel can trust the existence probability. True N/A
flags.can_trust_extension boolean Indicates if the input channel can trust the object size(extension). True N/A
flags.can_trust_classification boolean Indicates if the input channel can trust the object classification. True N/A
flags.can_trust_orientation boolean Indicates if the input channel can trust the object orientation. True N/A
optional.name string The name of the input channel. detected_objects N/A
optional.short_name string The short name of the input channel. all N/A

Core Parameters#

  • Node
Name Type Description Default Range
car_tracker string Tracker model for car class. multi_vehicle_tracker N/A
truck_tracker string Tracker model for truck class. multi_vehicle_tracker N/A
bus_tracker string Tracker model for bus class. multi_vehicle_tracker N/A
trailer_tracker string Tracker model for trailer class. multi_vehicle_tracker N/A
pedestrian_tracker string Tracker model for pedestrian class. pedestrian_and_bicycle_tracker N/A
bicycle_tracker string Tracker model for bicycle class. pedestrian_and_bicycle_tracker N/A
motorcycle_tracker string Tracker model for motorcycle class. pedestrian_and_bicycle_tracker N/A
publish_rate float Timer frequency to output with delay compensation. 10.0 N/A
world_frame_id string Object kinematics definition frame. map N/A
ego_frame_id string Vehicle's ego frame. base_link N/A
enable_delay_compensation boolean If True, tracker use timers to schedule publishers and use prediction step to extrapolate object state at desired timestamp. False N/A
consider_odometry_uncertainty boolean If True, consider odometry uncertainty in tracking. False N/A
enable_unknown_object_velocity_estimation boolean If True, enable velocity estimation for unknown objects. True N/A
enable_unknown_object_motion_output boolean If True, export unknown object velocity. False N/A
tracker_lifetime float Lifetime of the tracker in seconds. 1.0 N/A
min_known_object_removal_iou float Minimum IOU between associated objects with known label to remove younger tracker 0.1 N/A
min_unknown_object_removal_iou float Minimum IOU between associated objects with unknown label to remove unknown tracker 0.001 N/A
confident_count_threshold.UNKNOWN float Number of measurements to consider tracker as confident for unknown object classes. 3 N/A
confident_count_threshold.CAR float Number of measurements to consider tracker as confident for car object classes. 3 N/A
confident_count_threshold.TRUCK float Number of measurements to consider tracker as confident for truck object classes. 3 N/A
confident_count_threshold.BUS float Number of measurements to consider tracker as confident for bus object classes. 3 N/A
confident_count_threshold.TRAILER float Number of measurements to consider tracker as confident for trailer object classes. 3 N/A
confident_count_threshold.MOTORBIKE float Number of measurements to consider tracker as confident for motorbike object classes. 3 N/A
confident_count_threshold.BICYCLE float Number of measurements to consider tracker as confident for bicycle object classes. 3 N/A
confident_count_threshold.PEDESTRIAN float Number of measurements to consider tracker as confident for pedestrian object classes. 3 N/A
generalized_iou_thresholds array Generalized IoU threshold for each class. [-0.3, -0.4, -0.6, -0.6, -0.6, -0.1, -0.1, -0.1] N/A
overlap_distance_thresholds array Overlap distance threshold for each class. [9.0, 5.0, 9.0, 9.0, 9.0, 4.0, 3.0, 2.0] N/A
publish_processing_time boolean Enable to publish debug message of process time information. False N/A
publish_processing_time_detail boolean Enable to publish debug message of detailed process time information. False N/A
publish_tentative_objects boolean Enable to publish tentative tracked objects, which have lower confidence. False N/A
publish_debug_markers boolean Enable to publish debug markers, which indicates association of multi-inputs, existence probability of each detection. False N/A
diagnostics_warn_delay float Delay threshold for warning diagnostics in seconds. 0.5 N/A
diagnostics_error_delay float Delay threshold for error diagnostics in seconds. 1.0 N/A
diagnostics_warn_extrapolation float Delay extrapolation threshold for warning diagnostics in seconds. 0.5 N/A
diagnostics_error_extrapolation float Delay extrapolation threshold for error diagnostics in seconds. 1.0 N/A
  • Association
Name Type Description Default Range
can_assign_matrix array Assignment table for data association. [1, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 1, 1, 1] N/A
max_dist_matrix array Maximum distance table for data association. [4.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 4.0, 2.0, 5.0, 5.0, 5.0, 1.0, 1.0, 1.0, 4.0, 2.0, 5.0, 5.0, 5.0, 1.0, 1.0, 1.0, 4.0, 2.0, 5.0, 5.0, 5.0, 1.0, 1.0, 1.0, 4.0, 2.0, 5.0, 5.0, 5.0, 1.0, 1.0, 1.0, 3.0, 1.0, 1.0, 1.0, 1.0, 3.0, 3.0, 2.0, 3.0, 1.0, 1.0, 1.0, 1.0, 3.0, 3.0, 2.0, 2.0, 1.0, 1.0, 1.0, 1.0, 3.0, 3.0, 2.0] N/A
max_area_matrix array Maximum area table for data association. [100.0, 100.0, 100.0, 100.0, 100.0, 100.0, 100.0, 100.0, 12.1, 12.1, 36.0, 60.0, 60.0, 10000.0, 10000.0, 10000.0, 36.0, 12.1, 36.0, 60.0, 60.0, 10000.0, 10000.0, 10000.0, 60.0, 12.1, 36.0, 60.0, 60.0, 10000.0, 10000.0, 10000.0, 60.0, 12.1, 36.0, 60.0, 60.0, 10000.0, 10000.0, 10000.0, 2.5, 10000.0, 10000.0, 10000.0, 10000.0, 2.5, 2.5, 2.5, 2.5, 10000.0, 10000.0, 10000.0, 10000.0, 2.5, 2.5, 2.5, 2.0, 10000.0, 10000.0, 10000.0, 10000.0, 2.0, 2.0, 2.0] N/A
min_area_matrix array Minimum area table for data association. [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 3.6, 3.6, 6.0, 10.0, 10.0, 0.0, 0.0, 0.0, 6.0, 3.6, 6.0, 10.0, 10.0, 0.0, 0.0, 0.0, 10.0, 3.6, 6.0, 10.0, 10.0, 0.0, 0.0, 0.0, 10.0, 3.6, 6.0, 10.0, 10.0, 0.0, 0.0, 0.0, 0.001, 0.0, 0.0, 0.0, 0.0, 0.1, 0.1, 0.1, 0.001, 0.0, 0.0, 0.0, 0.0, 0.1, 0.1, 0.1, 0.001, 0.0, 0.0, 0.0, 0.0, 0.1, 0.1, 0.1] N/A
max_rad_matrix array Maximum angle table for data association. [3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 1.047, 1.047, 1.047, 1.047, 3.15, 3.15, 3.15, 3.15, 1.047, 1.047, 1.047, 1.047, 3.15, 3.15, 3.15, 3.15, 1.047, 1.047, 1.047, 1.047, 3.15, 3.15, 3.15, 3.15, 1.047, 1.047, 1.047, 1.047, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15, 3.15] N/A
min_iou_matrix array A matrix that represents the minimum Intersection over Union (IoU) limit allowed for assignment. [0.0001, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.2, 0.2, 0.2, 0.1, 0.1, 0.1, 0.1, 0.2, 0.3, 0.3, 0.3, 0.1, 0.1, 0.1, 0.1, 0.2, 0.3, 0.3, 0.3, 0.1, 0.1, 0.1, 0.1, 0.2, 0.3, 0.3, 0.3, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.1, 0.0001] N/A
unknown_association_giou_threshold float GIoU threshold for unknown-unknown association. -0.8 N/A

Simulation parameters#

Name Type Description Default Range
car_tracker string Tracker model for car class. pass_through_tracker N/A
truck_tracker string Tracker model for truck class. pass_through_tracker N/A
bus_tracker string Tracker model for bus class. pass_through_tracker N/A
pedestrian_tracker string Tracker model for pedestrian class. pass_through_tracker N/A
bicycle_tracker string Tracker model for bicycle class. pass_through_tracker N/A
motorcycle_tracker string Tracker model for motorcycle class. pass_through_tracker N/A

Assumptions / Known limits#

See the model explanations.

Performance Benchmark & Unit Testing#

Overview#

Unit tests and benchmarks are included to evaluate tracker performance under varying detection loads and object types.

How to Run Locally#

1. Build with Tests#

colcon build --packages-select autoware_multi_object_tracker \
  --cmake-args -DCMAKE_BUILD_TYPE=RelWithDebInfo

2. Run the Performance Benchmark#

source install/setup.bash
./build/autoware_multi_object_tracker/test_multi_object_tracker

This runs the default test (runPerformanceTest) and outputs timing data.

3. Enable Optional Profiling Modes (Manual)#

To evaluate scalability with object count:

  • Manually enable the following functions in the test source:
    • profilePerformanceVsCarCount()
    • profilePerformanceVsPedestrianCount()

These run additional profiling scenarios.

Rosbag Replay & Visualization#

Simulated Rosbag Output#

To record benchmark results for visualization in RViz:

  1. Enable write_bag = true in runIterations()
  2. Run the test; the output .db3 path is printed
  3. Visualize:
ros2 bag play <output_file>.db3
rviz2 -d <your_rviz_config>.rviz

Real Rosbag Input#

  1. Set the path in runPerformanceTestWithRosbag() to a real .db3 file
  2. Run the test
  3. Visualize the tracking result in RViz

(Optional) Error detection and handling#

(Optional) Performance characterization#

Evaluation of muSSP#

According to our evaluation, muSSP is faster than normal SSP when the matrix size is more than 100.

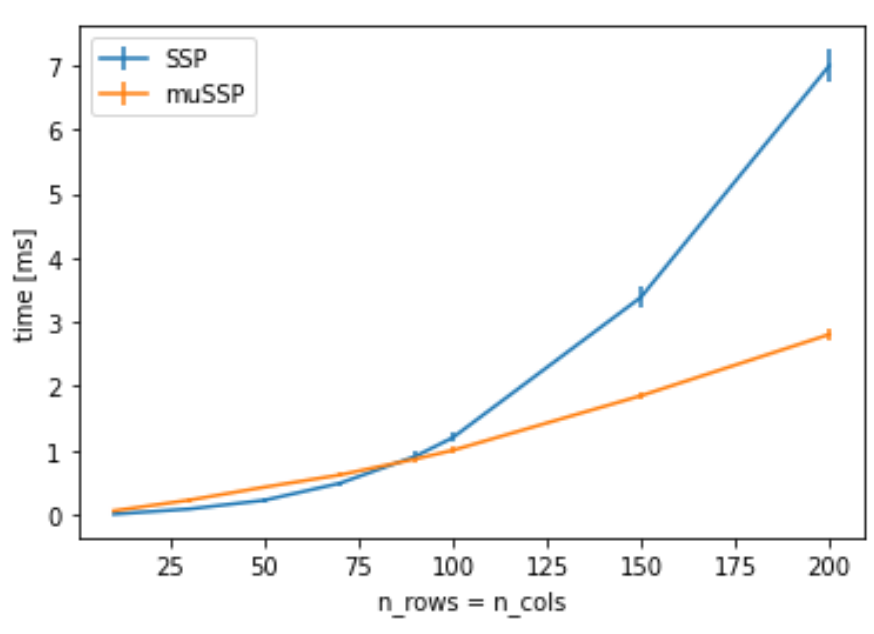

Execution time for varying matrix size at 95% sparsity. In real data, the sparsity was often around 95%. mussp_evaluation1

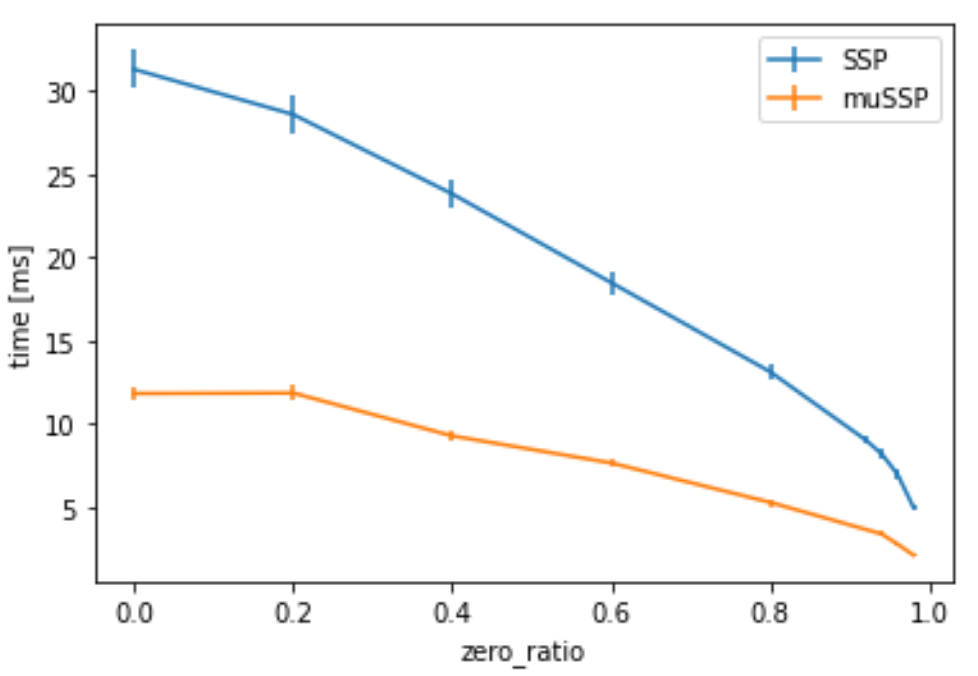

Execution time for varying the sparsity with matrix size 100. mussp_evaluation2

This package makes use of external code.

Name License Original Repository
muSSP Apache-2.0 https://github.com/yu-lab-vt/muSSP

[1] C. Wang, Y. Wang, Y. Wang, C.-t. Wu, and G. Yu, "muSSP: Efficient Min-cost Flow Algorithm for Multi-object Tracking," NeurIPS, 2019
