Obstacle Slow Down

Role

The obstacle_slow_down module does the slow down planning when there is a static/dynamic obstacle near the trajectory.

Activation

This module is activated if the launch parameter launch_obstacle_slow_down_module is set to true.

Inner-workings / Algorithms

Obstacle Filtering

Obstacles meeting the following condition are determined as obstacles for slowing down.

• The object type is for slowing down according to obstacle_filtering.object_type.*.
• The lateral distance from the object to the ego's trajectory is smaller than obstacle_filtering.max_lat_margin and larger than obstacle_filtering.min_lat_margin.
  • For the stable decision making, obstacle_filtering.lat_hysteresis_margin is applied for the hysteresis of the lateral margin.
• The obstacle which meets the condition obstacle_filtering.successive_num_to_entry_slow_down_condition times in a row will be a target obstacle
• The obstacle which was previously the target obstacle but does not meet the condition obstacle_filtering.successive_num_to_entry_slow_down_condition times in a row will not be a target obstacle.

Slow Down Planning

The role of the slow down planning is inserting slow down velocity in the trajectory where the trajectory points are close to the obstacles. The parameters can be customized depending on the obstacle type, making it possible to adjust the slow down behavior depending if the obstacle is a pedestrian, bicycle, car, etc. Each obstacle type has a static and a moving parameter set, so it is possible to customize the slow down response of the ego vehicle according to the obstacle type and if it is moving or not. If an obstacle is determined to be moving, the corresponding moving set of parameters will be used to compute the vehicle slow down, otherwise, the static parameters will be used. The static and moving separation is useful for customizing the ego vehicle slow down behavior to, for example, slow down more significantly when passing stopped vehicles that might cause occlusion or that might suddenly open its doors.

An obstacle is classified as static if its total speed is less than the moving_object_speed_threshold parameter. Furthermore, a hysteresis based approach is used to avoid chattering, it uses the moving_object_hysteresis_range parameter range and the obstacle's previous state (moving or static) to determine if the obstacle is moving or not. In other words, if an obstacle was previously classified as static, it will not change its classification to moving unless its total speed is greater than moving_object_speed_threshold + moving_object_hysteresis_range. Likewise, an obstacle previously classified as moving, will only change to static if its speed is lower than moving_object_speed_threshold - moving_object_hysteresis_range.

The closest point on the obstacle to the ego's trajectory is calculated. Then, the slow down velocity is calculated by linear interpolation with the distance between the point and trajectory as follows.

Variable	Description
v_{out}	calculated velocity for slow down
v_{min}	min_ego_velocity
v_{max}	max_ego_velocity
l_{min}	min_lat_margin
l_{max}	max_lat_margin
l'_{max}	obstacle_filtering.max_lat_margin

The parameters min/max_ego_velocity and min/max_lat_margin can be adjusted based on the obstacle type, its side relative to the ego trajectory, and whether it is moving or not. Default values must be provided at launch (object_type_specified_params.default...), but each parameter can be overridden for specific cases (obstacle type, left or right, moving or not). For example, the min_ego_velocity can be modified for moving cars on the left by setting a different value with parameter object_type_specified_params.default.left.moving.min_ego_velocity.

The calculated velocity is inserted in the trajectory where the obstacle is inside the area with obstacle_filtering.max_lat_margin. More precisely, the velocity is inserted <slow down velocity> * slow_down_planning.time_margin_on_target_velocity meters behind the obstacle.

Sudden deceleration suppression

When the slow down point is inserted, the deceleration and jerk is supposed to be higher than slow_down_planning.slow_down_min_acc and slow_down_planning.slow_down_min_jerk respectively. If the slow down point does not follow this condition, the velocity will be increased and the slow down point does not change.

Stable slow down planning

The following low-pass filters will be applied.

• slow_down_planning.lpf_gain_slow_down_vel
  • slow down velocity
• slow_down_planning.lpf_gain_lat_dist
  • lateral distance of obstacles to the ego's trajectory to calculate the target velocity
• slow_down_planning.lpf_gain_dist_to_slow_down
  • distance to the slow down point

Debugging

Obstacle for slow down

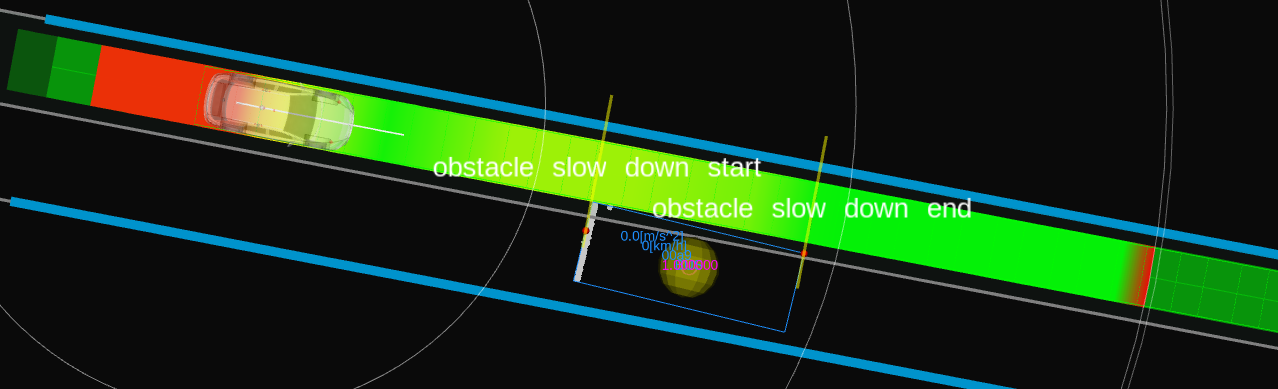

Yellow sphere which is an obstacle for slow_down is visualized by obstacles_to_slow_down in the ~/debug/marker topic.

Yellow wall which means a safe distance to slow_down if the ego's front meets the wall is visualized in the ~/debug/slow_down/virtual_wall topic.
