Intersection Collision Checker

The intersection_collision_checker is a plugin module of autoware_planning_validator node. It is responsible for validating the planning trajectory at intersections by verifying that it does NOT lead to a collision with other road vehicles.

The check is executed only when:

• Ego is approaching a turn_direction lane
• Ego trajectory intersects with lanes other than route_lanelets

Inner Workings

The intersection_collision_checker checks for collisions using pointcloud data and route information. It identifies target lanes at intersections and extracts pcd objects withing target lanes, and performs simplistic tracking and velocity estimation of pcd objects for each target lane. Times to arrival are computed for Ego and pcd objects, and the difference in the arrival time is used to judge if a collision is imminent.

Flowchart

The following diagram illustrates the overall flow of module implementation:

Ego Trajectory

The intersection_collision_checker module utilizes the ego trajectory subscribed to by planning_validator node, it uses the resampled trajectory to avoid clustered trajectory points in low velocity areas. The for each trajectory point the time_from_start is computed with respect to the ego's front pose and the ego's back pose. This information is later used to estimate the ego's entry and exit times for each target lanelet.

Target Lanelets

The module applies slightly different logic for acquiring target lanes for right and left turn intersections. In case of right turn intersection, the aim is to check all lanes crossing/overlapping with the egos intended trajectory. In case of left turn, the aim is check no vehicles are coming along the destination lane (lane ago turning into).

Warning

Target lane selection logic applies only for Left-hand traffic (LHT). The module should be improved to be driving side agnostic.

Right Turn

To get the target lanelets for a right-turn intersection:

• Use ego’s turn-direction lane to define the search space (bounding box enclosing the turn-direction lane).
• Get all lanelets within the bounding box as candidate lanelets.
• Filter out the following lanelets:
  • Lanelets that are route_lanelets
  • Lanelets with a "time to reach" exceeding the time horizon
  • Lanelets that have the turn_direction attribute and are not STRAIGHT (if parameter right_turn.check_turn_lanes is FALSE)
  • Lanelets that are determined to be crossing lanes (if parameter right_turn.check_crossing_lanes is FALSE)
  • Lanelets that are excluded based on traffic signal context (if parameter right_turn.check_traffic_signal is TRUE and the right-turn arrow signal is active)
• Remaining lanelets are then processed to:
  • Compute the overlap point between the ego trajectory and the target lanelet
  • Compute ego’s time to arrive and leave the overlap point

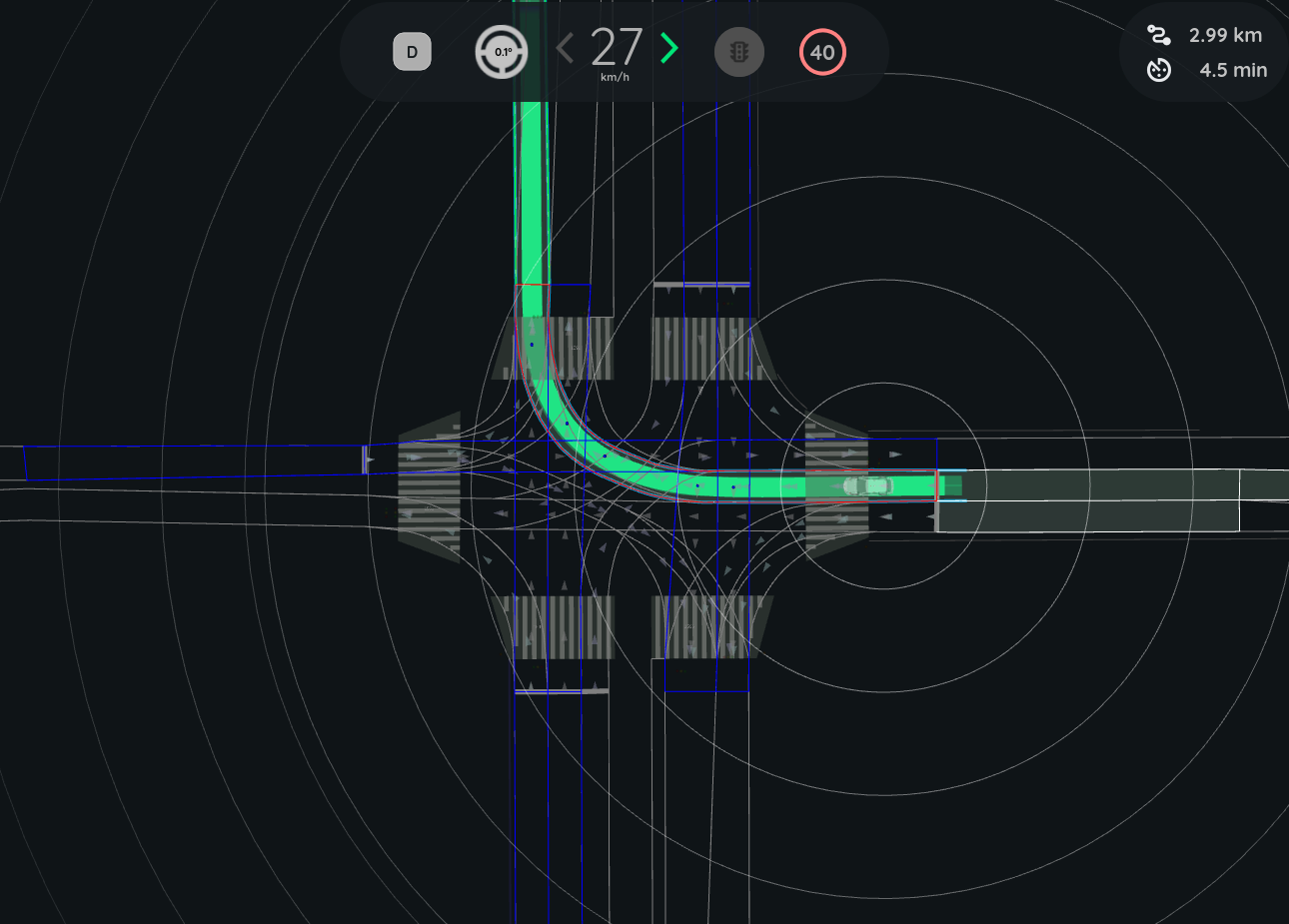

The image below shows the target lanelets at a right-turn intersection. (right_turn.check_turn_lanes set to FALSE)

---

Left Turn

To get the target lanelets for a left-turn intersection:

• Use ego’s turn-direction lanelet(s) to get the next lanelet, the "destination_lanelet," following the turn.
• Get all lanelets preceding the "destination_lanelet" and filter out:
  • Lanelets that are route_lanelets
  • Lanelets with a "time to reach" exceeding the time horizon
  • Lanelets that have the turn_direction attribute and are not STRAIGHT (if parameter left_turn.check_turn_lanes is FALSE)
  • Lanelets that are excluded based on traffic signal context (if parameter left_turn.check_traffic_signal is TRUE and the signal is green or amber, giving priority to the left-turn movement)
• Remaining lanelets are then processed to:
  • Compute the overlap point between the ego trajectory and the target lanelet
  • Compute ego’s time to arrive and leave the overlap point

Target lanelets are then expanded, if necessary, up to detection_range.

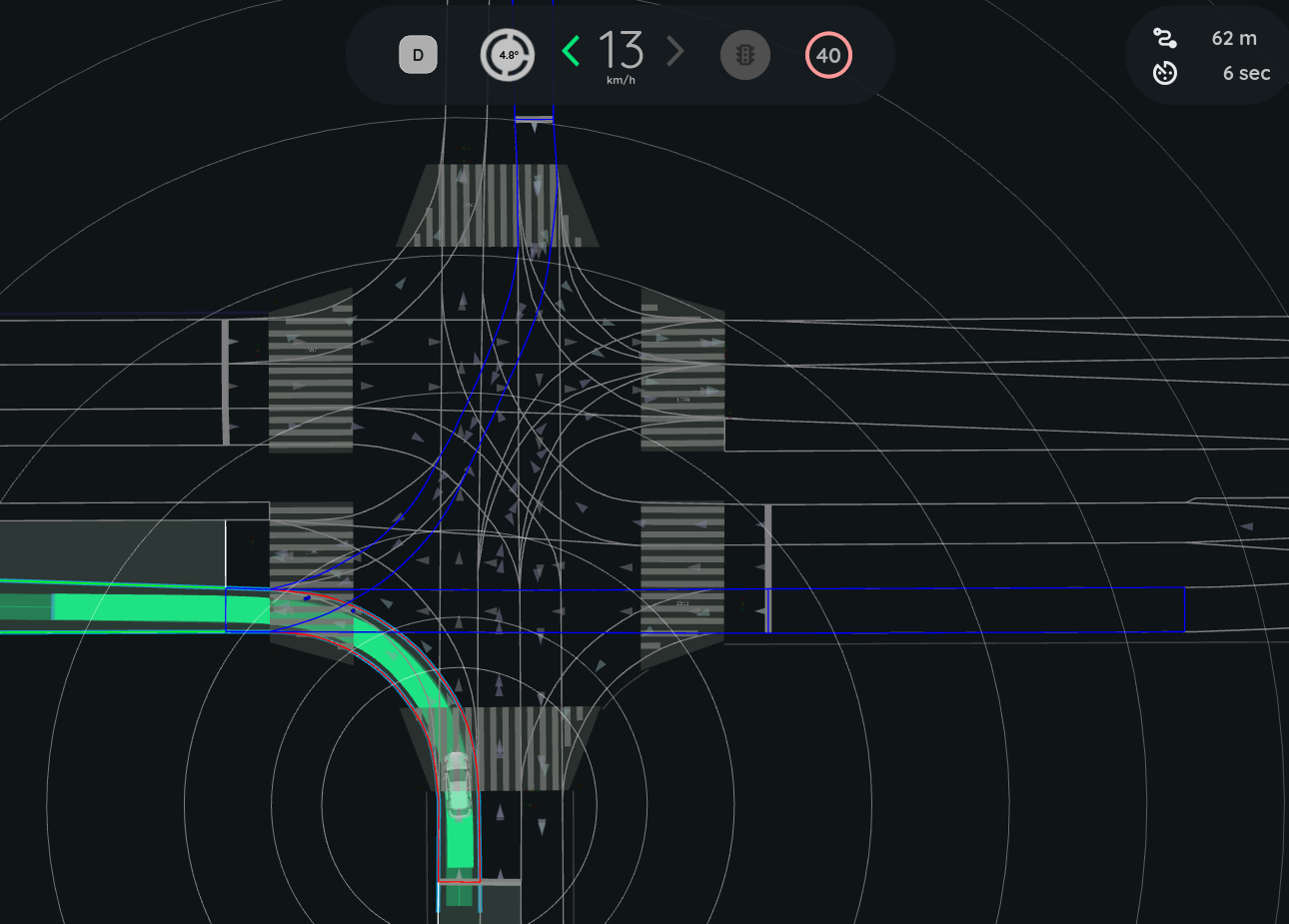

The image below shows the target lanelets at a left-turn intersection. (left_turn.check_turn_lanes set to TRUE)

Collision Check

After target lanes are determined, The next step is to identify pcd objects and perform velocity estimation and tracking for each target lane, and determine possibility of collision.

First the object pointcloud is filtered and transformed to map frame. Then the logic described in the following diagram is applied for each target lane to get the nearest pcd object:

For each tracked object, the velocity estimation is done with linear regression, using the last N samples of distance measurements and time stamps. If any of the following conditions are met the tracking information is reset and the object is handled as a new object:

• Computed raw velocity exceeds threshold (parameterized) -> Indicates a large jump in pcd object position.
• Computed acceleration exceeds threshold (parameterized) -> Indicates a large change in estimated velocity.

Parameters

Name	Unit	Type	Description	Default value
enable	[-]	bool	Flag to enable/disable the check globally	true
detection_range	[m]	double	Range of detection from ego position, pointcloud points beyond this range are filtered out	50.0
ttc_threshold	[s]	double	Threshold value for the difference between ego and object reach times to trigger and a stop	1.0
ego_deceleration	[m/ss]	double	Ego deceleration relate used to estimate ego stopping time	1.0
min_time_horizon	[s]	double	Minimum time horizon to check ahead along ego trajectory	10.0
on_time_buffer	[s]	double	Continuous collision detection time required to judge as unsafe	0.5
off_time_buffer	[s]	double	Continuous no collision detection time required to clear unsafe decision	1.0
filter.min_velocity	[m/s]	double	Minimum velocity threshold to determine moving object	1.0
filter.moving_time	[s]	double	Minimum duration object needs to satisfy min velocity condition to classify as moving	1.0

Target Lanes Parameters

Name	Unit	Type	Description	Default value
right_turn.enable	[-]	bool	Flag to enable/disable the check at right turns	true
right_turn.check_crossing_lanes	[-]	bool	Flag to enable/disable checking crossing lanes	true
right_turn.check_turn_lanes	[-]	bool	Flag to enable/disable checking turning lanes	true
right_turn.crossing_lane_angle_th	[rad]	double	Angle threshold for determining crossing lanes	0.785398
right_turn.check_traffic_signal	[-]	bool	Use traffic light context for right-turn validation	true
left_turn.enable	[-]	bool	Flag to enable/disable the check at left turns	true
left_turn.check_turn_lanes	[-]	bool	Flag to enable/disable checking turning lanes	true
left_turn.check_traffic_signal	[-]	bool	Use traffic light context for left-turn validation	true

Pointcloud Parameters

Name	Unit	Type	Description	Default value
pointcloud.height_buffer	[m]	double	Height offset to add above ego vehicle height when filtering pointcloud points	0.5
pointcloud.min_height	[m]	double	Minimum height threshold for filtering pointcloud points	0.5
pointcloud.voxel_grid_filter.x	[m]	double	x value for voxel leaf size	0.2
pointcloud.voxel_grid_filter.y	[m]	double	y value for voxel leaf size	0.2
pointcloud.voxel_grid_filter.z	[m]	double	z value for voxel leaf size	0.2
pointcloud.voxel_grid_filter.min_size	[-]	int	min number of points per voxel leaf	3
pointcloud.clustering.tolerance	[m]	double	Distance tolerance between two points in a cluster	0.5
pointcloud.clustering.min_height	[m]	double	Minimum height of a cluster to be considered as a target	0.5
pointcloud.clustering.min_size	[-]	int	Minimum number of points in a cluster to be considered as a target	10
pointcloud.clustering.max_size	[-]	int	Maximum number of points in a cluster to be considered as a target	10000
pointcloud.velocity_estimation.max_acceleration	[s]	double	Max acceleration threshold above which object tracking is reset	20.0
pointcloud.velocity_estimation.max_velocity	[s]	double	Max velocity threshold above which object tracking is reset	25.0
pointcloud.velocity_estimation.observation_time	[s]	double	Minimum tracking time for a pointcloud object to be considered reliable	0.3
pointcloud.velocity_estimation.max_history_time	[s]	double	Maximum duration since last object update above which object will be discarded	0.5
pointcloud.velocity_estimation.buffer_size	[-]	int	Number of data samples to keep for object velocity estimation	10
pointcloud.latency	[s]	double	Time delay used to compensate for latency in pointcloud data	0.3
