steer_offset_estimator

Purpose

The role of this node is to automatically calibrate steer_offset used in the vehicle_interface node. k

Inner-workings / Algorithms

This module estimates the steering offset using a Kalman Filter algorithm based on vehicle kinematic model constraints.

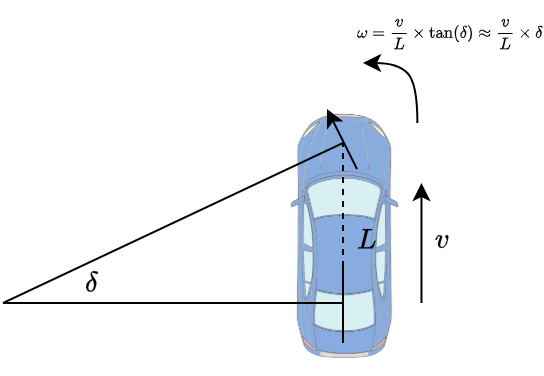

Kinematic Model

The vehicle kinematic model relates steering angle to angular velocity:

\[ \omega = \frac{v}{L} \times \tan(\delta) \approx \frac{v}{L} \times \delta \]

Where:

• \(\omega\): Angular velocity (yaw rate) [rad/s]
• \(v\): Vehicle velocity [m/s]
• \(L\): Wheelbase [m]
• \(\delta\): Steering angle [rad]

Problem Formulation

Due to mechanical tolerances and sensor calibration errors, there exists a steering offset \(\delta_{offset}\). The true relationship becomes:

\[ \omega_{observed} = \frac{v}{L} \times (\delta_{measured} + \delta_{offset}) + noise \]

The algorithm estimates \(\delta_{offset}\) by minimizing the error between observed and predicted angular velocity.

Kalman Filter Algorithm

The Kalman Filter algorithm updates the offset estimate and covariance recursively with time and measurement updates:

• Regressor and measurement formulation:

  \[ \phi = \frac{v}{L} \]
  \[ y = \omega_{observed} - \phi \times \delta_{measured} \]

• Time update (process model):

  \[ P_{prior} = P_{k-1} + Q \]

• Measurement update denominator:

  \[ denom = R + \phi^2 \times P_{prior} \]

• Kalman gain calculation:

  \[ K = \frac{P_{prior} \times \phi}{denom} \]

• Innovation (residual) and state update:

  \[ residual = y - \phi \times \delta_{offset,prev} \]
  \[ \delta_{offset,new} = \delta_{offset,prev} + K \times residual \]

• Covariance update:

  \[ P_k = P_{prior} - \frac{P_{prior} \times \phi^2 \times P_{prior}}{denom} \]

Where:

• \(P\): Estimation covariance matrix (scalar in this 1D case)
• \(Q\): Process noise covariance (allows parameter drift)
• \(R\): Measurement noise covariance
• \(K\): Kalman gain
• \(k\): Current time step

Algorithm Constraints

The algorithm only updates when:

• Vehicle velocity > min_velocity (ensures reliable kinematic model)
• \(|\delta_{measured}|\) < max_steer (avoids nonlinear tire behavior)
• Both pose and steering data are available

This Kalman Filter approach provides continuous, real-time calibration of steering offset during normal driving operations, with process noise allowing adaptation to changing conditions and measurement noise handling sensor uncertainties.

Inputs / Outputs

Input

Name	Type	Description
~/input/pose	geometry_msgs::msg::PoseStamped	vehicle pose
~/input/steer	autoware_vehicle_msgs::msg::SteeringReport	steering

Output

Name	Type	Description
~/output/steering_offset	autoware_internal_debug_msgs::msg::Float32Stamped	steering offset
~/output/steering_offset_covariance	autoware_internal_debug_msgs::msg::Float32Stamped	covariance of steering offset
~/output/debug_info	autoware_internal_debug_msgs::msg::StringStamped	debug info

Parameters

Name	Type	Description	Default	Range
initial_covariance	float	steer offset is larger than tolerance	1000	N/A
update_hz	float	update hz of steer data	10	≥0.0
initial_offset	float	initial steer offset value	0	N/A
process_noise_covariance	float	process noise covariance for Kalman filter	0.01	≥0.0
measurement_noise_covariance	float	measurement noise covariance for Kalman filter	0.01	≥0.0
denominator_floor	float	minimum value for denominator to avoid numerical issues	1e-12	≥0.0
covariance_floor	float	minimum value for covariance to avoid numerical issues	1e-12	≥0.0
min_velocity	float	velocity below this value is not used	1	≥0.0
max_steer	float	steer above this value is not used	0.03	N/A
