autoware_tensorrt_vad#

Overview#

The autoware_tensorrt_vad is a ROS 2 component that implements end-to-end autonomous driving using the TensorRT-optimized Vectorized Autonomous Driving (VAD) model. It leverages the VAD model (Jiang et al., 2023), optimized for deployment using NVIDIA's DL4AGX TensorRT framework.

This module replaces traditional localization, perception, and planning modules with a single neural network, trained on the Bench2Drive benchmark (Jia et al., 2024) using CARLA simulation data. It integrates seamlessly with Autoware and is designed to work within the Autoware framework.

Features#

  • Monolithic End-to-End Architecture: Single neural network directly maps camera inputs to trajectories, replacing the entire traditional perception-planning pipeline with one unified model - no separate detection, tracking, prediction, or planning modules
  • Multi-Camera Perception: Processes 6 surround-view cameras simultaneously for 360° awareness
  • Vectorized Scene Representation: Efficient scene encoding using vector maps for reduced computational overhead
  • Real-time TensorRT Inference: Optimized for embedded deployment with ~20ms inference time
  • Integrated Perception Outputs: Generates both object predictions (with future trajectories) and map elements as auxiliary outputs
  • Temporal Modeling: Leverages historical features for improved temporal consistency and prediction accuracy

Visualization#

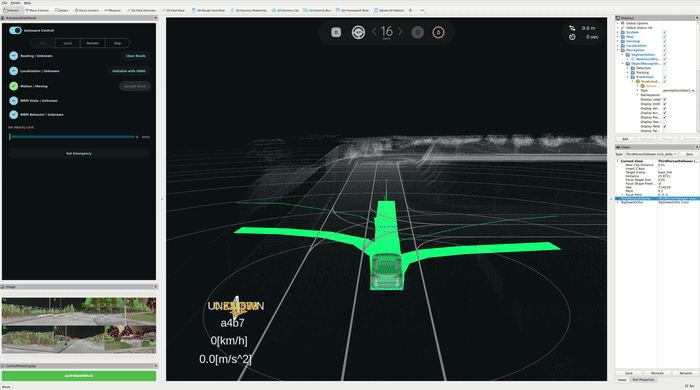

Lane Following Demo#

Lane Following

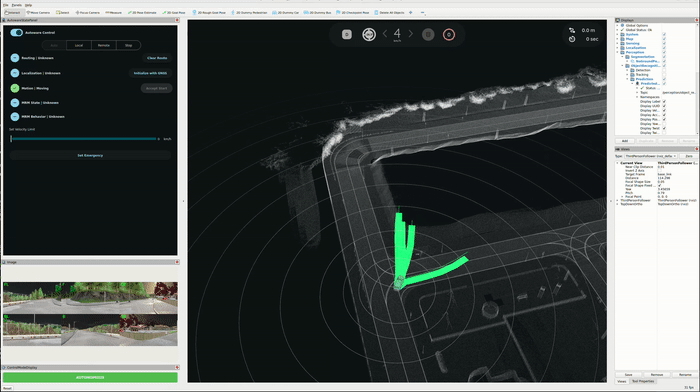

Turn Right Demo#

Turn Right

Parameters#

Parameters can be set via configuration files:

  • Deployment configuration (node and interface parameters): config/vad_carla_tiny.param.yaml
  • Model architecture parameters: vad-carla-tiny.param.json (downloaded with model to ~/autoware_data/vad/v0.1/)

Inputs#

Topic Message Type Description
~/input/image* sensor_msgs/msg/Image* Camera images 0-5: FRONT, BACK, FRONT_LEFT, BACK_LEFT, FRONT_RIGHT, BACK_RIGHT
~/input/camera_info* sensor_msgs/msg/CameraInfo Camera calibration for cameras 0-5
~/input/kinematic_state nav_msgs/msg/Odometry Vehicle odometry
~/input/acceleration geometry_msgs/msg/AccelWithCovarianceStamped Vehicle acceleration

*Image transport supports both raw and compressed formats. Configure per-camera via use_raw parameter (default: compressed).

Outputs#

Topic Message Type Description
~/output/trajectory autoware_planning_msgs/msg/Trajectory Selected ego trajectory
~/output/trajectories autoware_internal_planning_msgs/msg/CandidateTrajectories All 6 candidate trajectories
~/output/objects autoware_perception_msgs/msg/PredictedObjects Predicted objects with trajectories
~/output/map visualization_msgs/msg/MarkerArray Predicted map elements

Building#

Build the package with colcon:

colcon build --symlink-install --cmake-args -DCMAKE_EXPORT_COMPILE_COMMANDS=ON -DCMAKE_BUILD_TYPE=Release --packages-up-to autoware_tensorrt_vad

Testing#

Unit Tests#

Unit tests are provided and can be run with:

colcon test --packages-select autoware_tensorrt_vad
colcon test-result --all

For verbose output:

colcon test --packages-select autoware_tensorrt_vad --event-handlers console_cohesion+

CARLA Simulator Testing#

First, setup CARLA following the autoware_carla_interface instructions.

Then launch the E2E VAD system:

ros2 launch autoware_launch e2e_simulator.launch.xml \
  map_path:=$HOME/autoware_map/Town01 \
  vehicle_model:=sample_vehicle \
  sensor_model:=carla_sensor_kit \
  simulator_type:=carla \
  use_e2e_planning:=true

Model Setup and Versioning#

Model Download#

The VAD model files are automatically downloaded when setting up the Autoware development environment.

To download the latest models, simply run the provided setup script: How to set up a development environment

The models will be downloaded to ~/autoware_data/vad/ by default.

Manual Download (if needed): Models are hosted at: https://awf.ml.dev.web.auto/planning/models/tensorrt_vad/carla_tiny/v0.1/

Model Preparation#

⚠ Note: The node automatically builds TensorRT engines from ONNX models on first run. Pre-built engines are cached for subsequent runs and are hardware-specific.

Model Components (trained on Bench2Drive CARLA dataset):

  • vad-carla-tiny_backbone.onnx - Image feature extraction backbone
  • vad-carla-tiny_head_no_prev.onnx - Planning head (first frame)
  • vad-carla-tiny_head.onnx - Temporal planning head

If you need to manually configure the model paths, update them in config/vad_carla_tiny.param.yaml:

model_params:
  nets:
    backbone:
      onnx_path: "$(var model_path)/v0.1/vad-carla-tiny_backbone.onnx"
      engine_path: "$(var model_path)/v0.1/vad-carla-tiny_backbone.engine"
    head:
      onnx_path: "$(var model_path)/v0.1/vad-carla-tiny_head.onnx"
      engine_path: "$(var model_path)/v0.1/vad-carla-tiny_head.engine"
    head_no_prev:
      onnx_path: "$(var model_path)/v0.1/vad-carla-tiny_head_no_prev.onnx"
      engine_path: "$(var model_path)/v0.1/vad-carla-tiny_head_no_prev.engine"
  1. Launch the node: On first run, the node will automatically:
    • Build TensorRT engines from ONNX models
    • Optimize for your specific GPU
    • Cache engines at the specified engine_path locations
    • Use FP16 precision for backbone and FP32 for heads (configurable)

Model Version History#

Version Training Dataset Release Date Notes Node Compatibility
0.1 Bench2Drive CARLA 2025-11-04 - Initial release
- 6-camera surround view
- Trained on CARLA Towns
- FP16/FP32 mixed precision		 >= 0.1.0

❗ Limitations#

While VAD demonstrates promising end-to-end driving capabilities, users should be aware of the following limitations:

Training Data Constraints#

  • Simulation-Only Training: The model is trained exclusively on CARLA simulator data, which may not capture the full complexity and variability of real-world driving scenarios

Lack of High-Level Command Interface#

  • No Dynamic Mission Control: The current implementation lacks a high-level command interface, meaning the model cannot dynamically switch between driving behaviors (e.g., "follow lane" → "turn right at next intersection") during runtime

Development & Contribution#

  • Follow the Autoware coding guidelines.
  • Contributions, bug reports, and feature requests are welcome via GitHub issues and pull requests.

References#

Core Model#

  1. VAD: Vectorized Scene Representation for Efficient Autonomous Driving (2023)

Training and Datasets#

  1. Bench2Drive: Towards Multi-Ability Benchmarking of Closed-Loop End-To-End Autonomous Driving (2024)

Deployment and Optimization#

  1. DL4AGX (2024)
    • Resource: github.com/NVIDIA/DL4AGX
    • Description: TensorRT optimization for autonomous driving workloads and embedded GPU deployment strategies

  1. nuScenes: A Multimodal Dataset for Autonomous Driving (2020)

  2. BEVFormer: Learning Bird's-Eye-View Representation from Multi-Camera Images via Spatiotemporal Transformers (2022)

License#

This package is released under the Apache 2.0 License.
