OpenADKit Remote Visualization with Zenoh Bridge: Implementation Report and User Manual#

1. Introduction#

This document provides a comprehensive implementation guide and technical overview for the distributed architecture of the OpenADKit project. The core objective is to separate compute-intensive and lightweight components of an autonomous driving system, enabling deployment across different hardware. For example, the core Autoware software stack runs on the edge side (e.g., vehicle, or a powerful simulation server). Users can remotely visualize and manage Autoware from their laptops or a cloud-based management system.

To achieve this, we utilize Zenoh as a high-performance, low-latency communication protocol, paired with the zenoh-bridge-ros2dds tool to seamlessly connect two ROS 2 (Robot Operating System 2) environments isolated by Docker virtual networks. This manual covers architecture design, setup steps, system startup, and troubleshooting, providing complete operational guidance.

2. Detailed Architecture Design#

2.1. Core Concept: Edge-Cloud Model#

The system decouples the previously monolithic architecture into an edge-cloud model:

Edge Side: Includes components with high computational demands (especially CPU and GPU).
- autoware: Core perception, decision-making, and planning modules.
- scenario_simulator: Generates virtual traffic environments and provides simulated sensor data for Autoware.
- Deployment: Typically on vehicles or powerful edge machine.

Cloud Side: Includes lightweight components critical for user interaction and visualization.
- visualizer: Based on RViz2, encapsulated with noVNC, allowing users to access the visualization interface via any modern web browser without installing ROS 2 or RViz locally.
- Deployment: Typically on a user's laptop or a cloud-based management system, where low computational power is sufficient.

2.2. Architecture Diagram#

The following Mermaid diagram illustrates the components, networks, and data flow paths.

graph TD
    %% --- Style Definitions ---
    classDef machine fill:#f9f9f9,stroke:#333,stroke-width:2px,stroke-dasharray:5 5
    classDef network fill:#e6f3ff,stroke:#0066cc,stroke-width:1.5px
    classDef workload fill:#ffffff,stroke:#333
    classDef bridge fill:#fffbe6,stroke:#f0ad4e
    classDef invisible stroke:none,fill:none

    %% === Cloud Side ===
    subgraph CloudSide["Cloud Side (User Machine)"]
        direction LR
        class CloudSide machine

        subgraph CloudNet[cloud_net Network]
            direction TB
            class CloudNet network

            visualizer["**Visualizer**<br><br>Based on RViz2<br>Provides noVNC Remote Desktop"]
            cloud_bridge["**Cloud Zenoh Bridge**<br><br><u>Role</u>: Router<br>Listens on TCP/7447<br>Converts Zenoh ↔️ DDS"]
            class visualizer workload
            class cloud_bridge bridge

            visualizer -->|"ROS2 DDS Data"| cloud_bridge
        end
    end

    %% === Edge Side ===
    subgraph EdgeSide["Edge Side (Vehicle/Server)"]
        direction LR
        class EdgeSide machine

        subgraph EdgeNet[edge_net Network]
            direction TB
            class EdgeNet network

            autoware["**Autoware**<br><br>Core Autonomous Driving Algorithms<br>Perception, Planning, Control"]
            scenario_simulator["**Scenario Simulator**<br><br>Provides Simulation Scenarios<br>With Sensor Data"]
            edge_bridge["**Edge Zenoh Bridge**<br><br><u>Role</u>: Client<br>Converts DDS ↔️ Zenoh"]
            class autoware,scenario_simulator workload
            class edge_bridge bridge

            autoware <-->|"ROS2 DDS Data"| scenario_simulator
            autoware -->|"ROS2 DDS Data"| edge_bridge
            scenario_simulator -->|"ROS2 DDS Data"| edge_bridge
        end
    end

    %% === External & Cross-Network Connections ===
    user[fa:fa-user User] -->|"HTTP (Port 6080)"| visualizer
    edge_bridge -->|"<b>Zenoh Protocol over zenoh_net</b><br>Connects to tcp/cloud_zenoh_bridge:7447"| cloud_bridge

2.3. Network Isolation and Communication Bridge#

Network Design:
- edge_net: An isolated virtual network for autoware and scenario_simulator, using ROS 2 DDS multicast for low-latency communication.
- cloud_net: An isolated network for visualizer, simulating physical or logical separation from the server.
- TCP/IP (use zenoh_net docker network in this demo for simplicity): The network that is possible to connect edge_zenoh_bridge and cloud_zenoh_bridge, ensuring a clean cross-domain data transmission path.

Communication Core: Zenoh Bridge:
- cloud_zenoh_bridge (zenoh-bridge-ros2dds container): Acts as a Router, listening for client connections on TCP port 7447. It receives Zenoh data from the edge and converts it to ROS 2 DDS for the visualizer.
- edge_zenoh_bridge (zenoh-bridge-ros2dds container): Acts as a Client, connecting to the cloud_zenoh_bridge via zenoh_net. It scans for ROS 2 topics in edge_net, converts them to the Zenoh protocol, and forwards them to the router.
- config/zenoh-bridge-ros2dds.json5: A configuration file defining the bridge's mode, listening endpoints, and topic filtering rules, allowing precise control over transmitted data to optimize bandwidth.

3. User Manual#

3.1. Prerequisites#

Ensure the following software is installed: 1. Docker Engine: See Docker Installation Guide. 2. Docker Compose: Usually included with Docker Desktop; otherwise, see Docker Compose Installation Guide. 3. Git: For cloning the project. 4. A stable internet connection for pulling Docker images.

3.2. Installation and Setup#

Clone the Project: Execute the following commands in a terminal:

git clone https://github.com/autowarefoundation/openadkit
cd openadkit

Verify Directory Structure: Ensure the project includes:
```
.
├── README.md
├── docker-compose.yaml
└── config/
    └── zenoh-bridge-ros2dds.json5
```
Modify zenoh-bridge-ros2dds.json5 as needed to filter topics.

3.3. Starting the System#

Launch All Workloads: In the project root directory, run:
```
docker-compose up -d
```
- -d runs containers in the background.
- The first launch may take several minutes to download the required Docker images.
Monitor Startup Logs (Optional): To view the real-time logs from all workloads, run:
```
docker-compose logs -f
```

3.4. Verification and Usage#

Check Container Status: Run docker ps or docker-compose ps to ensure all containers are running:
- autoware
- scenario_simulator
- visualizer
- edge_zenoh_bridge
- cloud_zenoh_bridge

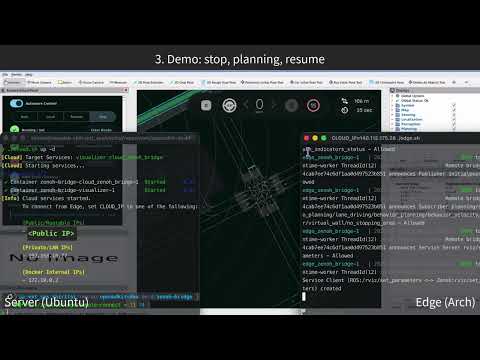

Access noVNC Visualization Interface: Open a web browser and navigate to:
```
http://localhost:6080
```
Use the default password openadkit.
Verify Operation:
- The noVNC interface should display the RViz2 visualization tool.
- If the Global Status in the RViz2 "Displays" panel shows OK (green text), the system is running correctly. You should see maps, the vehicle model, and other simulated objects.
- If it shows Warning, please refer to the troubleshooting section below.
Stop the System: To stop and remove all containers and networks, run:
```
docker-compose down -v
```
- The -v flag also removes the autoware_map volume. Omit it if you wish to preserve the downloaded map data for future use.

4. Troubleshooting#

Issue 1: Visualizer Shows "Global Status: Warning" or a Blank Screen#

Cause: This can be a race condition where ROS 2 nodes in one container start before the Zenoh bridge connection is fully established, preventing topics from being discovered correctly. The depends_on option in docker-compose.yaml helps, but doesn't guarantee workload readiness.

Solutions:

Restart Workloads: A simple restart often resolves timing issues.
```
docker-compose restart
```

Staged Startup: Manually start the core workloads first, wait a moment, then start the compute-heavy workloads.

# Start the cloud side and the bridges
docker-compose up -d cloud_zenoh_bridge edge_zenoh_bridge visualizer
# Wait for them to initialize
sleep 15
# Start the edge side
docker-compose up -d autoware scenario_simulator

Issue 2: Port Conflict (Port is already allocated)#

Cause: Ports 6080 or 7447 are in use by another program.
Solution:
- Stop the program using the port.
- Or modify docker-compose.yaml, e.g., change 6080:6080 to 8080:6080, and access via http://localhost:8080.

Issue 3: Container Fails to Start with `file not found` or Permission Issues#

Cause: The config/zenoh-bridge-ros2dds.json5 file is missing or inaccessible.
Solution:
- Verify the config directory and file exist.
- On Linux/macOS, check file permissions to ensure Docker can read them.
