Run Out

Role

The run_out module adds deceleration and stop points to the ego trajectory in order to prevent collisions with objects that are moving towards the ego vehicle path.

Activation

This module is activated if the launch parameter launch_mvp_run_out_module is set to true.

Inner-workings / Algorithms

This module calculates the times when the ego vehicle and the objects are predicted to overlap each other's trajectories. These times are then used to decide whether to stop before the overlap or not.

Next we explain the inner-workings of the module in more details.

1. Ego trajectory footprint

In this first step, the trajectory footprint is constructed from the corner points of the vehicle. 4 linestrings are constructed from the 4 corners (front left, front right, rear left, rear right) projected at each trajectory point.

At this step, the footprint size can be adjusted using the ego.lateral_margin and ego.longitudinal_margin parameters.

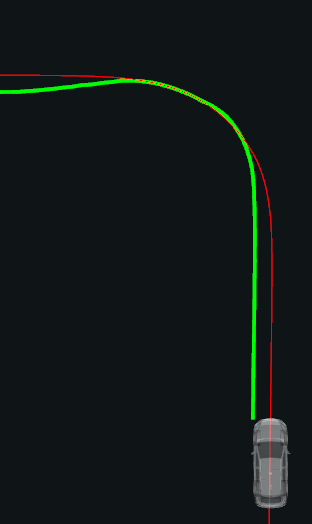

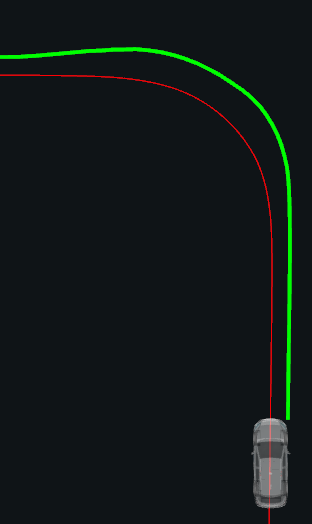

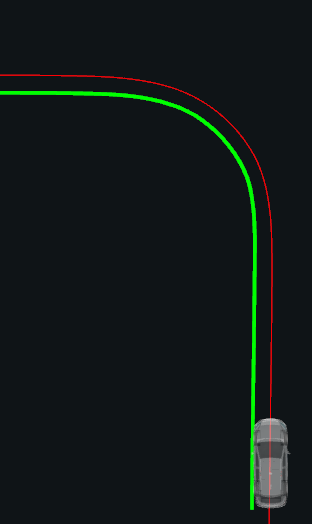

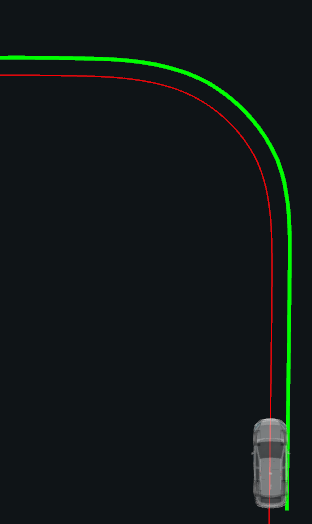

The following figures show the 4 corner linestrings calculated for the red trajectory.

front left	front right	rear left	rear right

These can be visualized on the debug markers with the ego_footprint_(front|rear)_(left|right) namespaces.

2. Extracting map filtering data

In the second step, we extract geometric information from the vector map that will be used to filter dynamic objects. For each object classification label, we prepare the following sets of geometries based on the parameters defined for that label (objects.{CLASSIFICATION_LABEL}):

• polygons to ignore objects (ignore.polygon_types and ignore.lanelet_subtypes);
  • polygons for the ego trajectory footprint are also added if ignore.if_on_ego_trajectory is set to true.
• polygons to ignore collisions (ignore_collisions.polygon_types and ignore_collisions.lanelet_subtypes);
• segments to cut predicted paths (cut_predicted_paths.polygon_types, cut_predicted_paths.linestring_types, and cut_predicted_paths.lanelet_subtypes).
  • the rear segment of the current ego footprint is also added if cut_predicted_paths.if_crossing_ego_from_behind is set to true.

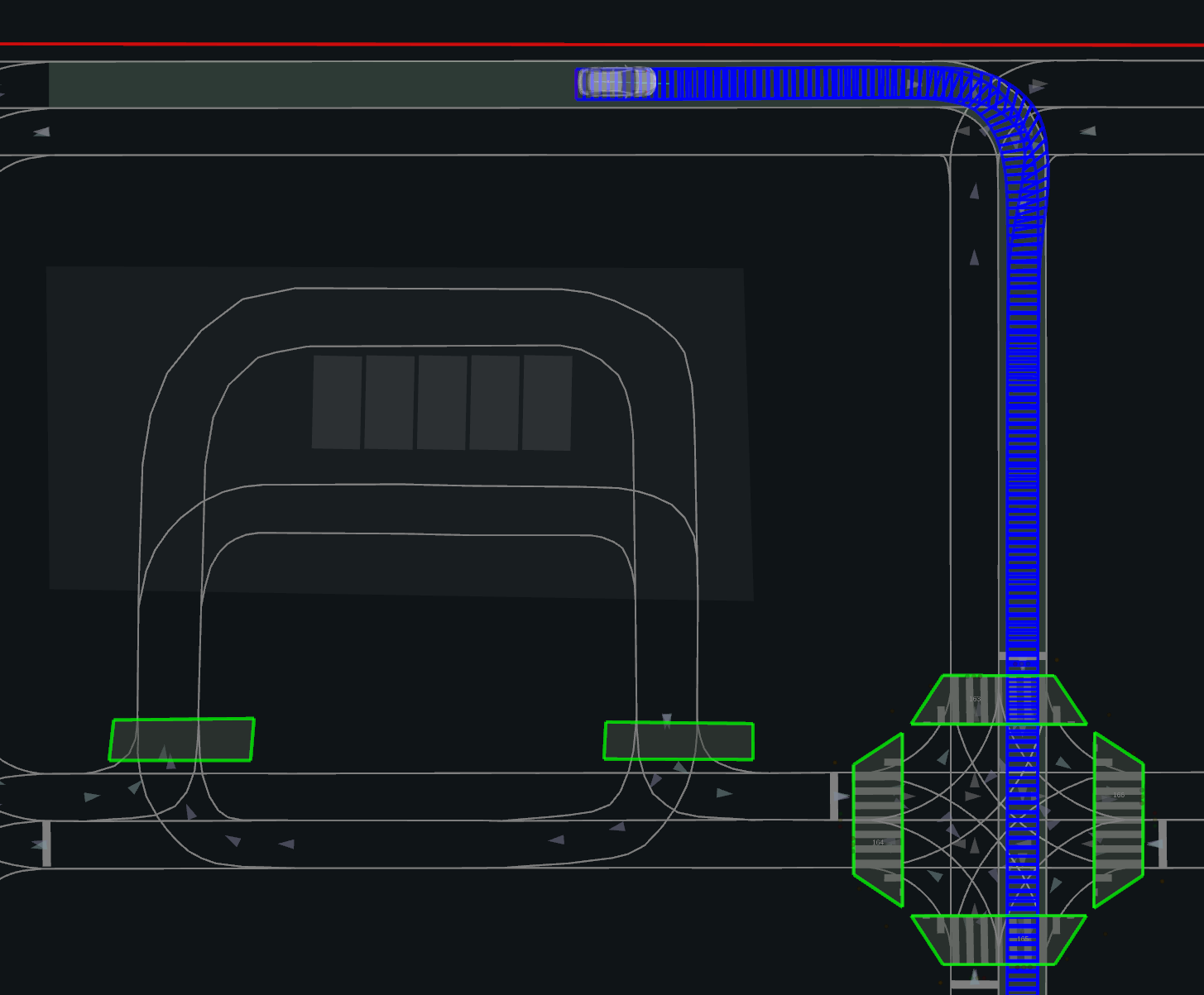

The following figure shows an example where the polygons to ignore objects are shown in blue, to ignore collisions in green, and to cut predicted paths in red.

These geometries can be visualized on the debug markers with the filtering_data_(ignore_objects|ignore_collisions|cut_predicted_paths) namespaces. The classification label corresponding to the published debug markers can be selected with parameter debug.object_label.

3. Dynamic objects filtering

In this step, objects and their predicted paths are filtered based on its classification label and the corresponding parameters objects.{CLASSIFICATION_LABEL}.

An object is ignored if one of the following condition is true:

• its classification label is not in the list defined by the objects.target_labels parameter;
• its velocity is bellow the ignore.stopped_velocity_threshold and ignore.if_stopped is set to true;
• its current footprint is inside one of the polygons prepared in the previous step.

However, if it was decided to stop for the object in the previous iteration, or if a collision was detected with the object, then it cannot be ignored.

If an object is not ignored, its predicted path footprints are generated similarly to the ego footprint First, we only keep predicted paths that have a confidence value above the confidence_filtering.threshold parameter. If, confidence_filtering.only_use_highest is set to true then for each object only the predicted paths that have the higher confidence value are kept. Next, the remaining predicted paths are cut according to the segments prepared in the previous step.

To guarantee that parts of the predicted paths are never ignored, parameters preserved_duration and preserved_distance can be used to set a minimum duration and/or distance that cannot be cut or ignored.

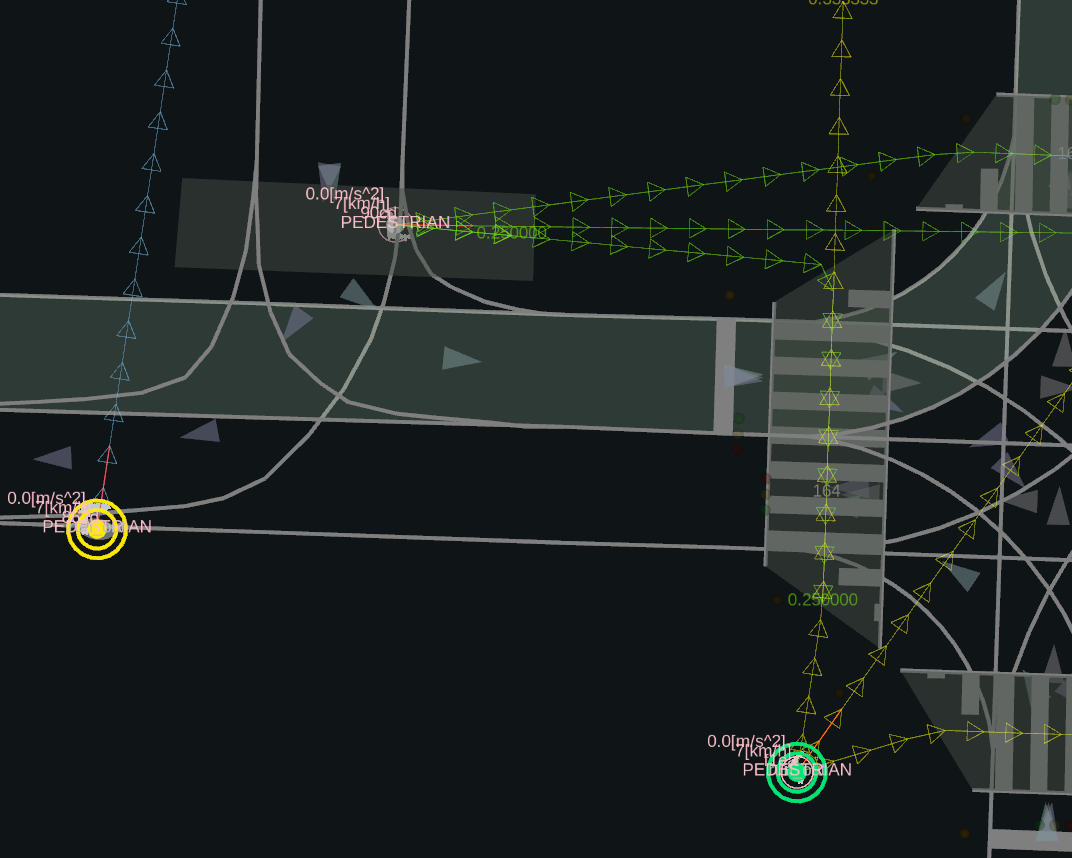

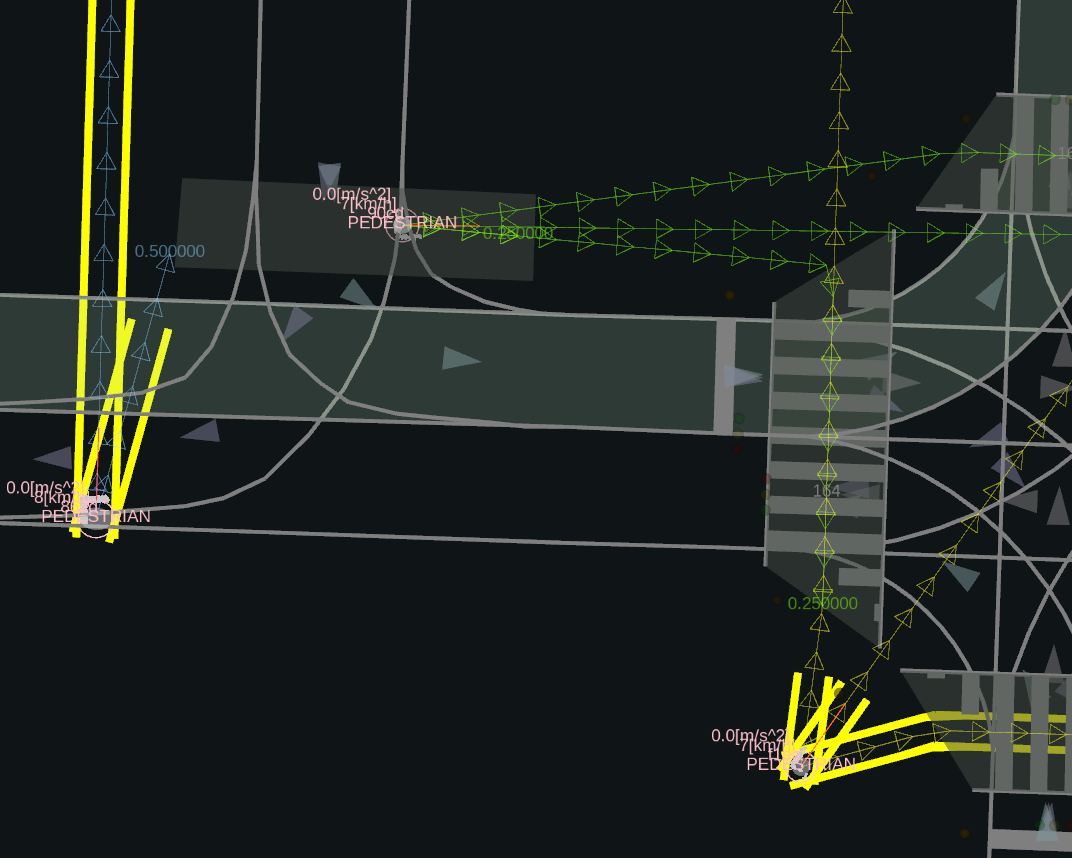

The following figures shows an example where crosswalks are used to ignore pedestrians and to cut their predicted paths.

debug markers (objects_footprints)	objects of interest

The result of the filtering can be visualized on the debug markers with the objects_footprints namespace which shows in yellow which predicted path will be used for collision checking in the next step.

In addition, the objects of interests markers shows which objects are not ignored and the color will correspond to the decision made towards that object (green for nothing, yellow for slowdown, and red for stop).

4. Collision detection

Now that we prepared the ego trajectory footprint, the dynamic objects, and their predicted paths, we will calculate the times when they are predicted to collide.

The following operations are performed for each object that was not ignored in the previous iteration.

First, we calculate the intersections between each pair of linestrings between the ego and object footprints. For each intersection, we calculate the corresponding point, the time when ego and the object are predicted to reach that point, and the location of that point on the ego footprint (e.g., on the rear left linestring).

All these intersections are then combined into intervals representing when the overlap between the ego trajectory and object predicted paths starts and ends. An overlap is represented by the entering and exiting intersections for both ego and the object.

These overlaps calculated for all the object's predicted paths are then combined if overlapping in time (including the collision.time_overlap_tolerance parameter). and classified into the following collision types:

• ignored_collision if one of the following condition is true:
  • parameter collision.ignore_conditions.if_ego_arrives_first.enable is set to true and:
    • ego enters the overlap at least time_margin seconds before the object.
      • time_margin is calculated based on the time when ego enters the overlap, which is used to interpolate the margin using the mapping between margin.ego_enter_times and margin.time_margins.
    • ego does not overlap the object's path by more than max_overlap_duration seconds.
  • parameter collision.ignore_conditions.if_ego_arrives_first.enable is set to true and:
    • ego cannot stop before entering the interval by using the deceleration limit set with deceleration_limit.
• collision if ego and the object are predicted to be in the overlap at the same time.
  • the time distance between the time intervals of ego and the objects must be smaller than the time_margin parameter (a distance of 0 means that the intervals overlap).
• pass_first_no_collision if ego is predicted to exit the overlap before the object enters it.
• no_collision in all other cases.

In the case where a collision is detected, the corresponding collision time is calculated based on the yaw difference between the object and the ego vehicle at the first intersection point.

• default: collision time is set to the time when ego enters the overlap.
• object yaw is within collision.same_direction_angle_threshold of the ego yaw:
  • if the object is faster than ego, no collision will happen and the type is changed to no_collision.
  • the collision time is increased based on the velocity difference.
• object yaw is within collision.opposite_direction_angle_threshold of the opposite of the ego yaw:
  • the collision time is increased based on the estimated time when ego will collide will the object after entering the overlap.

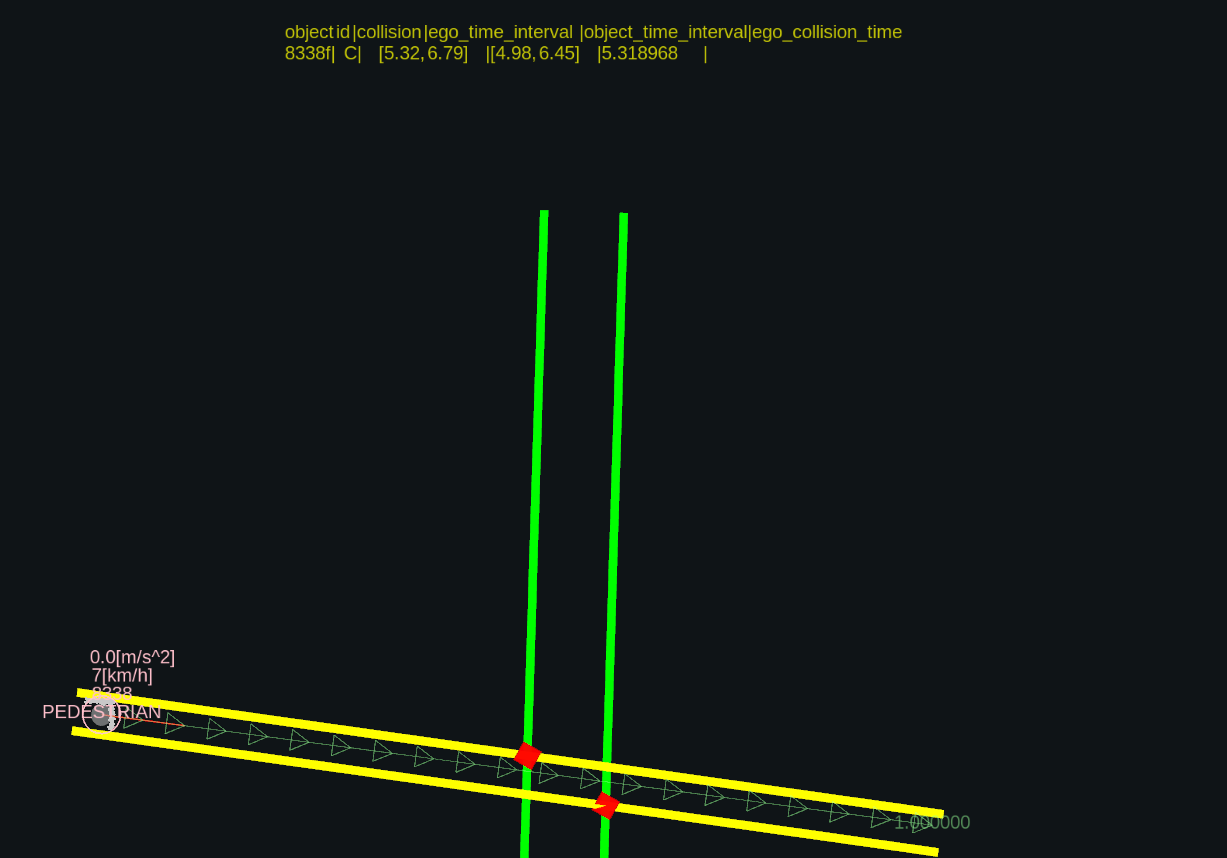

The following figure shows the collision points in red and a table showing each overlap found and the corresponding collision type, ego and object time intervals, and predicted ego collision time.

The collisions points and the table can be visualized on the debug markers with the collisions_points and collisions_table namespaces.

5. Decisions

We will now make the decision towards each object on whether to stop, slowdown, or do nothing. For each object, we consider what decision each collision require, and keep the one with highest priority as follows:

• stop types have higher priority than slowdown types.
• for two decisions of the same type, the one whose predicted collision time is earlier has higher priority.

Once a decision is made, the history of the object is updated and will allow to know, for each previous time step, what was the decision made and the type of collision identified.

To decide the type of a collision, we use the decision history of the object and first check if it satisfies the following conditions to stop:

• if the current collision type is collision and collisions with the object have been identified for a consecutive duration of at least stop.on_time_buffer seconds.
• if the previous decision was stop and the time since the last identified collision with the object was less than stop.off_time_buffer seconds ago.

If the condition to stop is not met, we check the following conditions to slowdown as follows:

• if the current collision type is collision and collisions with the object have been identified for a consecutive duration of at least slowdown.on_time_buffer seconds.
• if the previous decision was slowdown and the time since the last identified collision with the object was less than slowdown.off_time_buffer seconds ago.

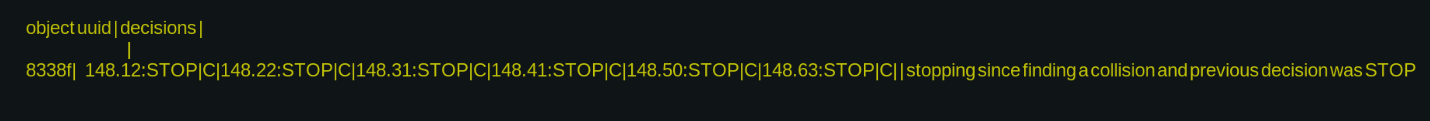

The decision table can be visualized on the debug markers with the decisions namespace.

6. Calculate the stop or slowdowns

Finally, for each object, we calculate how the velocity profile will be modified based on the decision made:

• stop: insert a 0 velocity ahead of the predicted collision point by the distance set in the stop.distance_buffer parameter.
• slowdown: insert a \(V_{slow}\) velocity between the collision point and the point ahead of collision point by the distance set in the slowdown.distance_buffer parameter.
  • \(V_{slow}\) is calculated as the maximum between the safe velocity and the comfortable velocity.
    • safe velocity: velocity required to be able to stop over the distance_buffer assuming a deceleration as set by the stop.deceleration_limit parameter.
    • comfortable velocity: velocity ego would reach assuming it constantly decelerates at the slowdown.deceleration_limit parameter until the slowdown point.

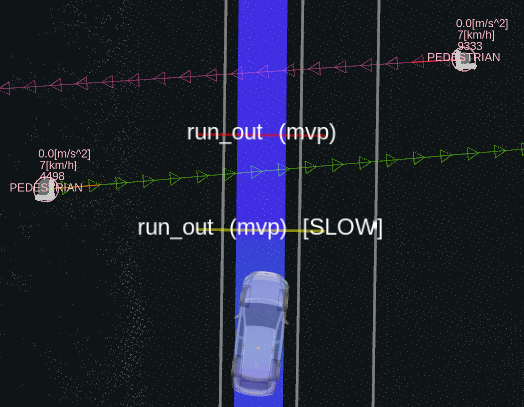

The slowdowns and stops inserted in the trajectory are visualized with the virtual walls.

If an inserted stop point requires a stronger deceleration than set by the stop.deceleration_limit parameter, then an ERROR diagnostic is published to indicate that the stop in unfeasible.

Use of Rtree for fast spatial queries

In step 1, each segment of the 4 linestrings of the ego trajectory footprint are stored in a Rtree along with the corresponding trajectory point index. This allows to efficiently find intersections with an object's predicted path along with the corresponding ego trajectory segment from which the interpolated time_from_start can be calculated.

In step 2, the polygons and linestrings used for filtering the objects are stored in Rtree objects to efficiently find whether an object is inside a polygon or if its predicted path intersects a linestring.

For more information about Rtree, see https://beta.boost.org/doc/libs/1_82_0/libs/geometry/doc/html/geometry/spatial_indexes/introduction.html

Accounting for prediction inaccuracies

When calculating predicted collisions between ego and the objects, we assume that the input ego trajectory contains accurate time_from_start values. Similarly, accurate predicted paths are expected to be provided for the objects.

To allow for errors in these predictions, margins around the time intervals can be added using the parameters collision.time_margin. Higher values of this parameter will make it more likely to detect a collision and generate a stop.

The time buffers on_time_buffer and off_time_buffer allow to delay the addition or removal of the decisions to stop/slowdown. Higher values prevent incorrect decisions in case of noisy object predictions, but also increase the reaction time, possibly causing stronger decelerations once a decision is made.

Module Parameters

Name	Type	Description	Default	Range
collision.time_margin	float	[s] extra time margin used to determine collisions	0.5	N/A
collision.time_overlap_tolerance	float	[s] when calculating overlap time intervals, intervals are grouped if they are separated by less than this tolerance value	0.1	N/A
collision.same_direction_angle_threshold	float	[rad] threshold to determine if a collision is going in the same direction as the ego trajectory	0.5	N/A
collision.opposite_direction_angle_threshold	float	[rad] threshold around pi to determine if a collision is going in a direction opposite to the ego trajectory	0.5	N/A
if_ego_arrives_first.enable	boolean	enable the condition to ignore collisions if ego arrives first	True	N/A
margin.ego_enter_times	array	[s] predicted times when ego starts overlapping the path of the object	[0.0, 3.0]	N/A
margin.time_margins	array	[s] margin values used such that ego needs to enter the overlap before the object with this much margin to decide to ignore the collision	[0.0, 6.0]	N/A
if_ego_arrives_first.max_overlap_duration	float	[s] the collision is not ignored if ego is predicted to stay on the object's path for longer than this duration	2.0	N/A
if_ego_arrives_first_and_cannot_stop.enable	boolean	enable the condition to ignore collisions if ego arrives first and cannot stop	True	N/A
if_ego_arrives_first_and_cannot_stop.deceleration_limit	float	[m/s²] deceleration used to determine if ego can stop before a collision	5.0	N/A
slowdown.on_time_buffer	float	[s] successive collision detection time required to start the slowdown decision	0.1	N/A
slowdown.off_time_buffer	float	[s] successive non-collision detection time required to remove the slowdown decision	0.5	N/A
slowdown.distance_buffer	float	[m] longitudinal distance between the collision and the slowdown positions	2.0	N/A
slowdown.deceleration_limit	float	[m/s²] maximum deceleration that can be applied by the preventive slowdown	4.0	N/A
stop.on_time_buffer	float	[s] successive collision detection time required to start the stopping decision	0.5	N/A
stop.off_time_buffer	float	[s] successive non-collision detection time required to remove a stopping decision	0.5	N/A
stop.distance_buffer	float	[m] longitudinal safety distance to keep between ego and the collision position	2.0	N/A
stop.deceleration_limit	float	[m/s²] if a stop causes a deceleration higher than this limit, an ERROR diagnostic is published	5.0	N/A
keep_condition.time	float	[s] time along the ego trajectory	5.0	N/A
keep_condition.distance	float	[m] distance along the ego trajectory	5.0	N/A
ego.lateral_margin	float	[m] extra lateral margin	0.0	N/A
ego.longitudinal_margin	float	[m] extra longitudinal margin	0.0	N/A
objects.target_labels	array	target labels	['PEDESTRIAN', 'BICYCLE', 'MOTORCYCLE']	N/A
ignore.if_stopped	boolean	if true, object with a velocity bellow the threshold are ignored	False	N/A
ignore.stopped_velocity_threshold	float	[m/s] velocity threshold to decide if an object is stopped	0.5	N/A
ignore.if_on_ego_trajectory	boolean	if true, object located on the ego trajectory footprint are ignored	True	N/A
ignore.if_behind_ego	boolean	if true, objects located behind the ego vehicles are ignored	True	N/A
ignore.polygon_types	array	types of polygons in the vector map used to ignore objects	['NONE']	N/A
ignore.lanelet_subtypes	array	subtypes of lanelets in the vector map used to ignore objects	['NONE']	N/A
DEFAULT.preserved_duration	float	[s] when cutting a predicted path or ignoring an object, at least this much duration is preserved from the predicted paths	0.0	N/A
DEFAULT.preserved_distance	float	[m] when cutting a predicted path or ignoring an object, at least this much distance is preserved from the predicted paths	0.0	N/A
DEFAULT.standstill_duration_after_cut	float	[s] after cutting a predicted path, assume the object stands still at the last point for this duration	2.0	N/A
debug.object_label	string	debug markers specific to each object classification labels will only be published for this one	PEDESTRIAN	N/A

Flow Diagram

Debugging and Tuning Guide

Ego does not stop for the incoming object

Possible reasons to investigate:

• the object classification label is not in the objects.target_labels;
• the object is inside an ignore polygon (objects.LABEL.ignore.polygon_types or lanelet_subtypes);
• the object is on the ego trajectory (objects.LABEL.ignore.if_on_ego_trajectory) or behind ego (if_behind_ego);
• the predicted path of the object is cut (objects.LABEL.cut_predicted_paths.polygon_types, lanelet_subtypes, or linestring_types);
• the collision is ignored;
  • ego does not have time to stop (ignore_conditions.if_ego_arrives_first_and_cannot_stop);
    • deceleration_limit can be increased.
  • ego is predicted to pass before the object (ignore_conditions.if_ego_arrives_first), including the time margin (calculated from margin.ego_enter_times and margin.time_margins);
    • time_margins can be increased.
• the collision is not detected;
  • collision.time_margin can be increased.
  • the ego footprint can be made larger (ego.lateral_margin and ego.longitudinal.margin).
